AT Shift Lock System
>>
Electrical Specification
Electrical Specification
Download the full database via torrent (~1.1 TB)
Fig 1: Identifying Electrical Socket

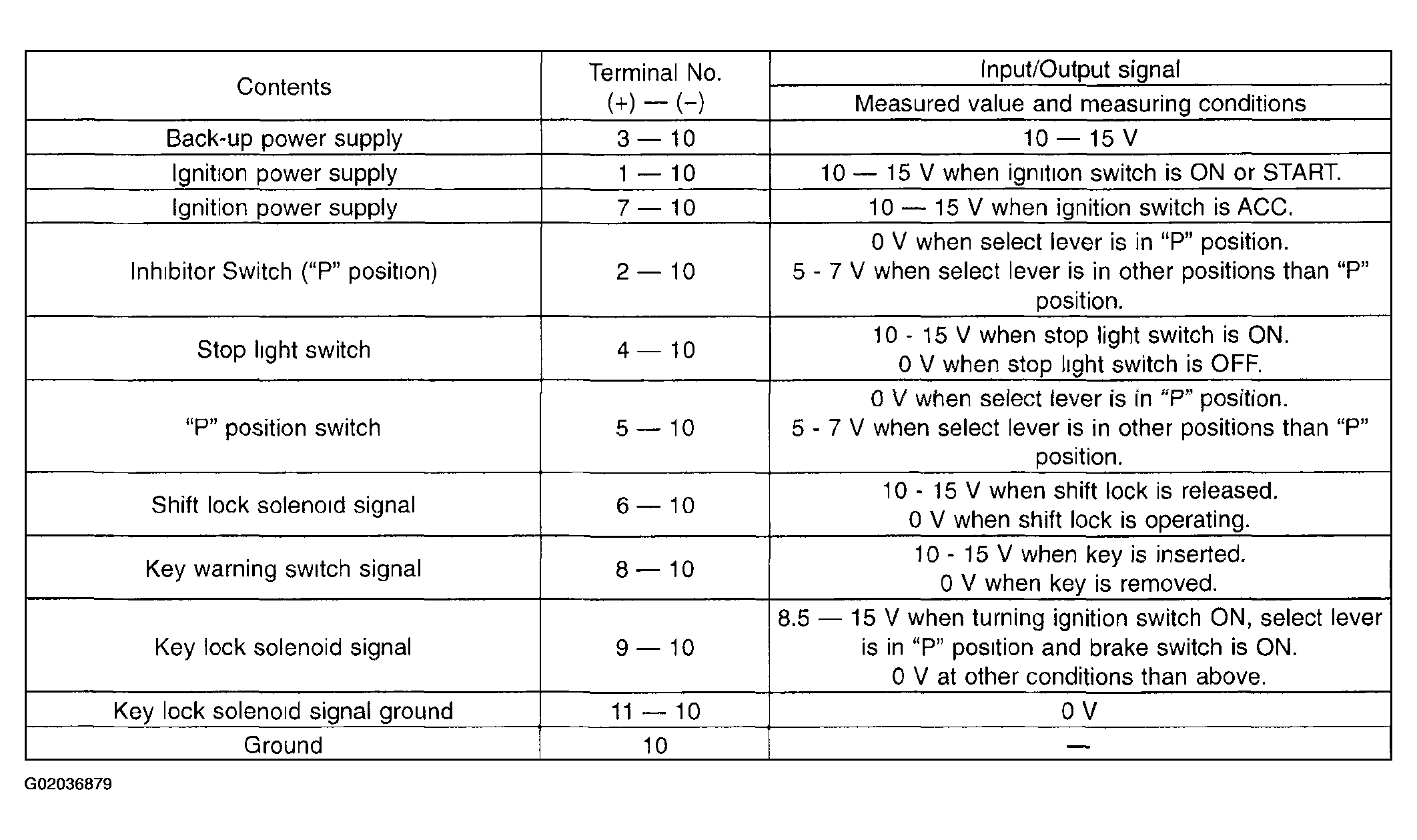

Fig 2: Electrical Specifications Chart
