AT Shift Lock System: Schematic
Download the full database via torrent (~1.1 TB)

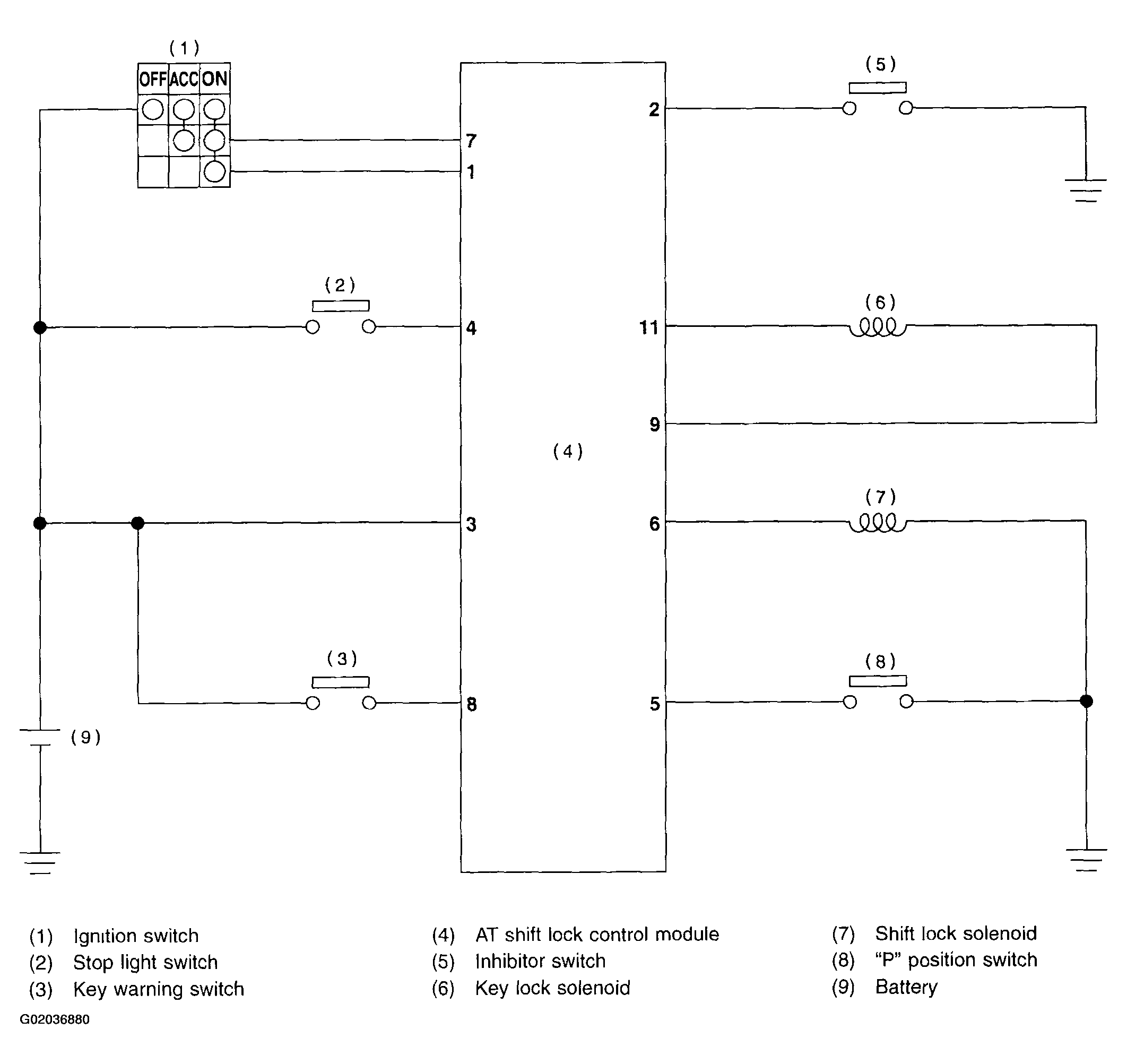

Fig 1: Identifying Electrical Components & Circuits
