Engine Coolant Temperature Sensor: Installation
Download the full database via torrent (~1.1 TB)
Install in the reverse order of removal.
Tightening torque:
18 N.m (1.8 kgf-m, 13 ft-lb)

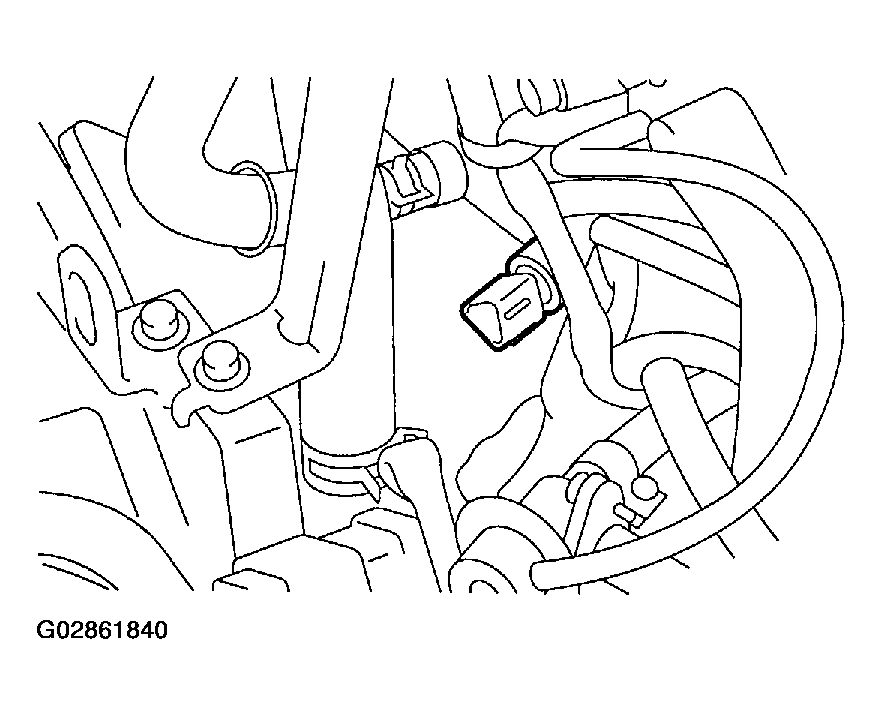

Fig 1: Installing Engine Coolant Temperature Sensor
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
