Fuel Cut Valve: Installation
Download the full database via torrent (~1.1 TB)
Install in the reverse order of removal.
Tightening torque:
4.4 N.m (0.45 kgf-m, 3.3 ft-lb)

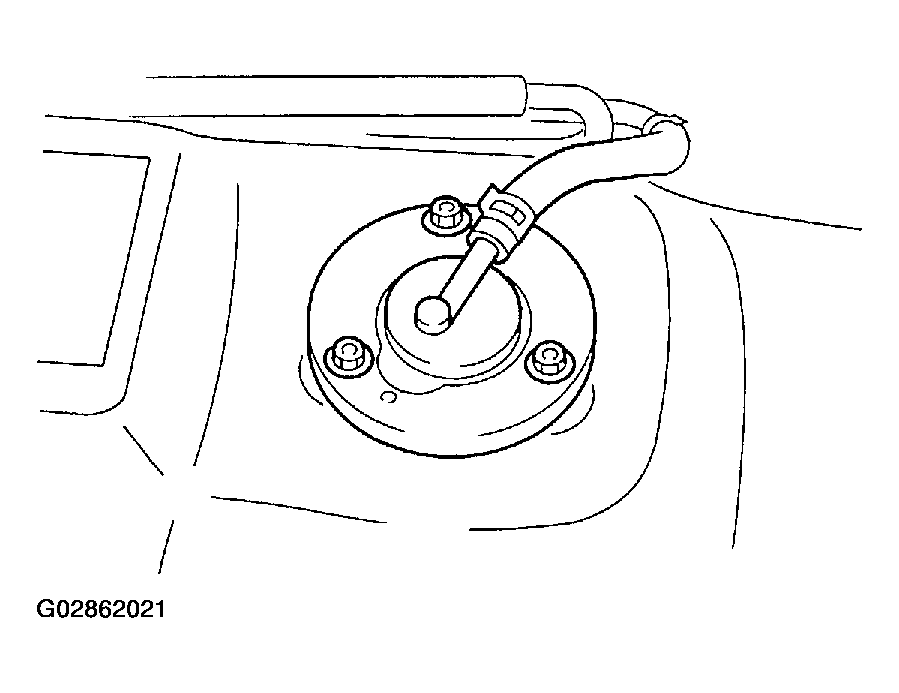

Fig 1: Installing Fuel Cut Valve Bolts
Courtesy of SUBARU OF AMERICA, INC.
