Knock Sensor: Removal

Disconnect battery ground cable from battery ground terminal.

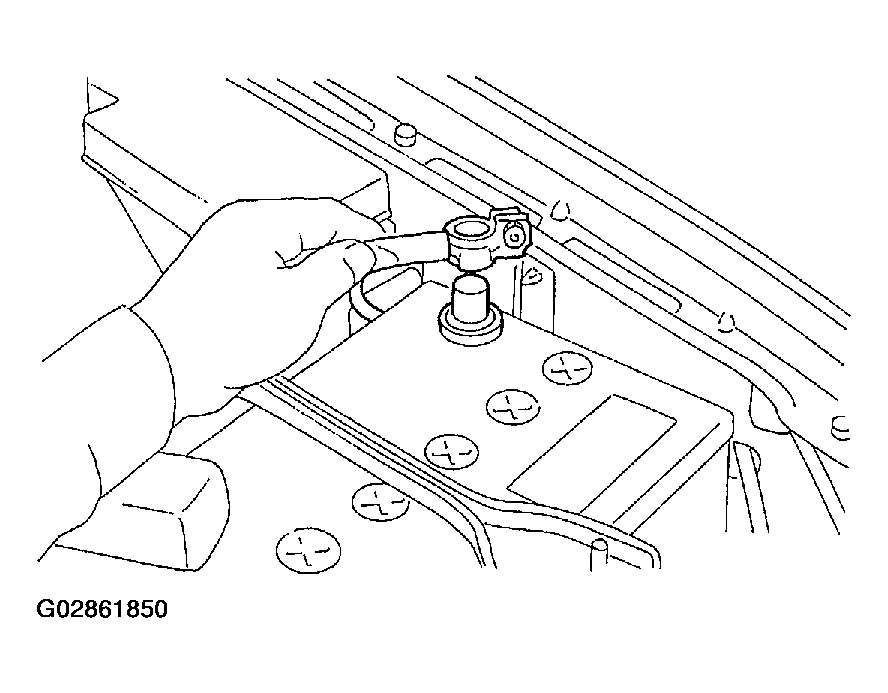

Fig 1: Disconnecting Battery Ground Cable
Courtesy of SUBARU OF AMERICA, INC.
Remove air cleaner case.

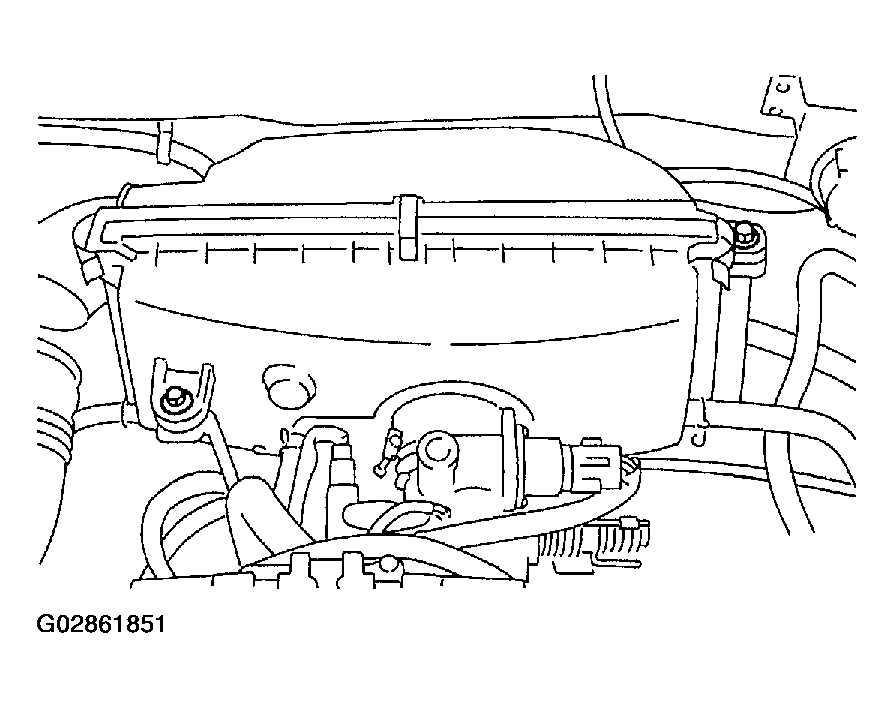

Fig 2: Removing Air Cleaner Case
Courtesy of SUBARU OF AMERICA, INC.
Disconnect knock sensor connector.

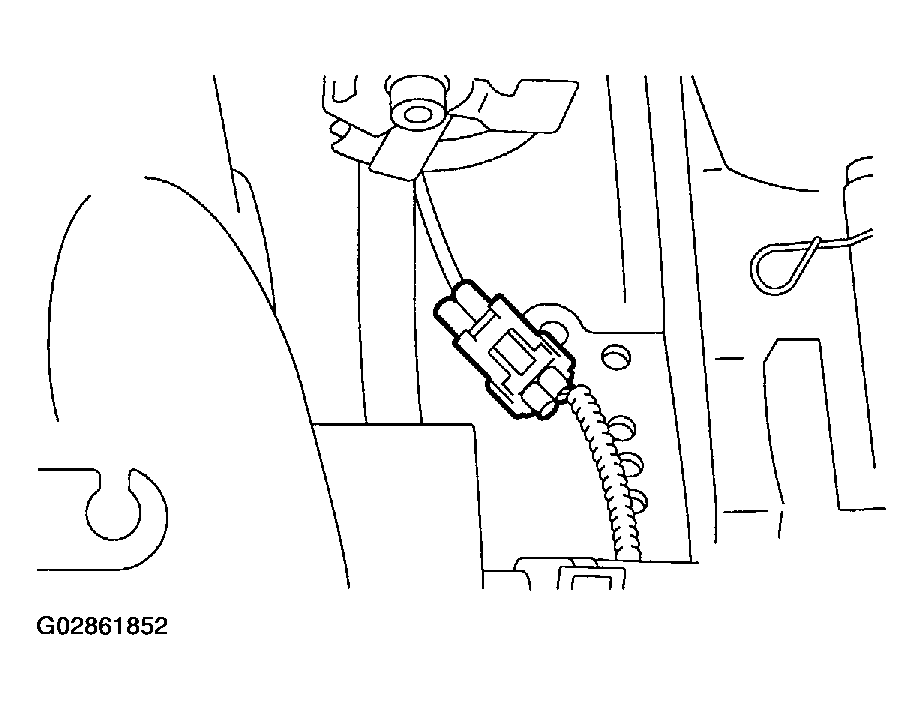

Fig 3: Disconnecting Knock Sensor Connector
Courtesy of SUBARU OF AMERICA, INC.
Remove knock sensor from cylinder block.

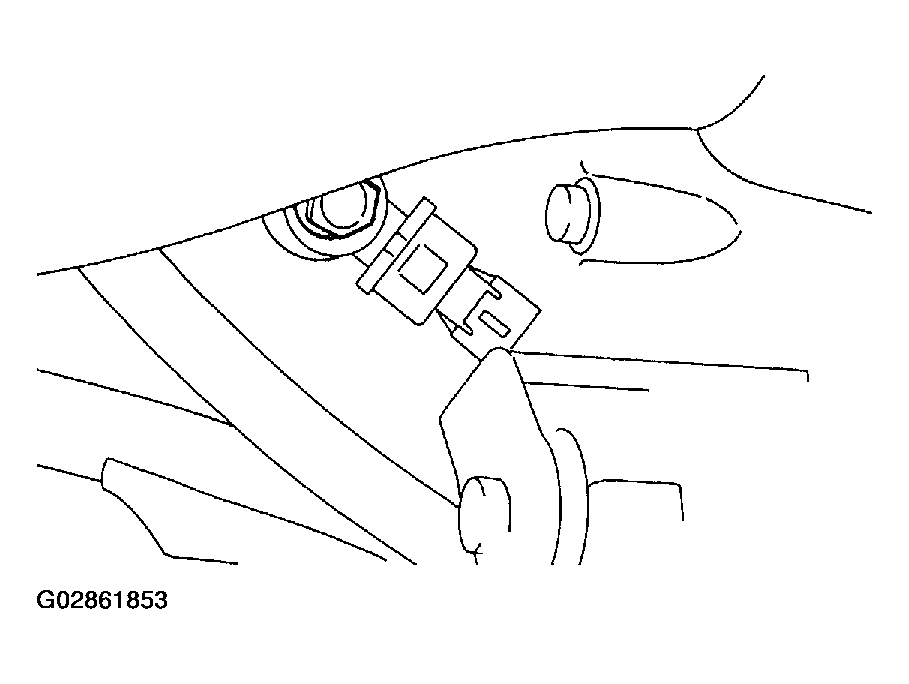

Fig 4: Removing Knock Sensor
Courtesy of SUBARU OF AMERICA, INC.
