Lock Test

With the starter stalled, or not rotating, measure the torque developed and current draw when voltage is adjusted to the specified voltage.

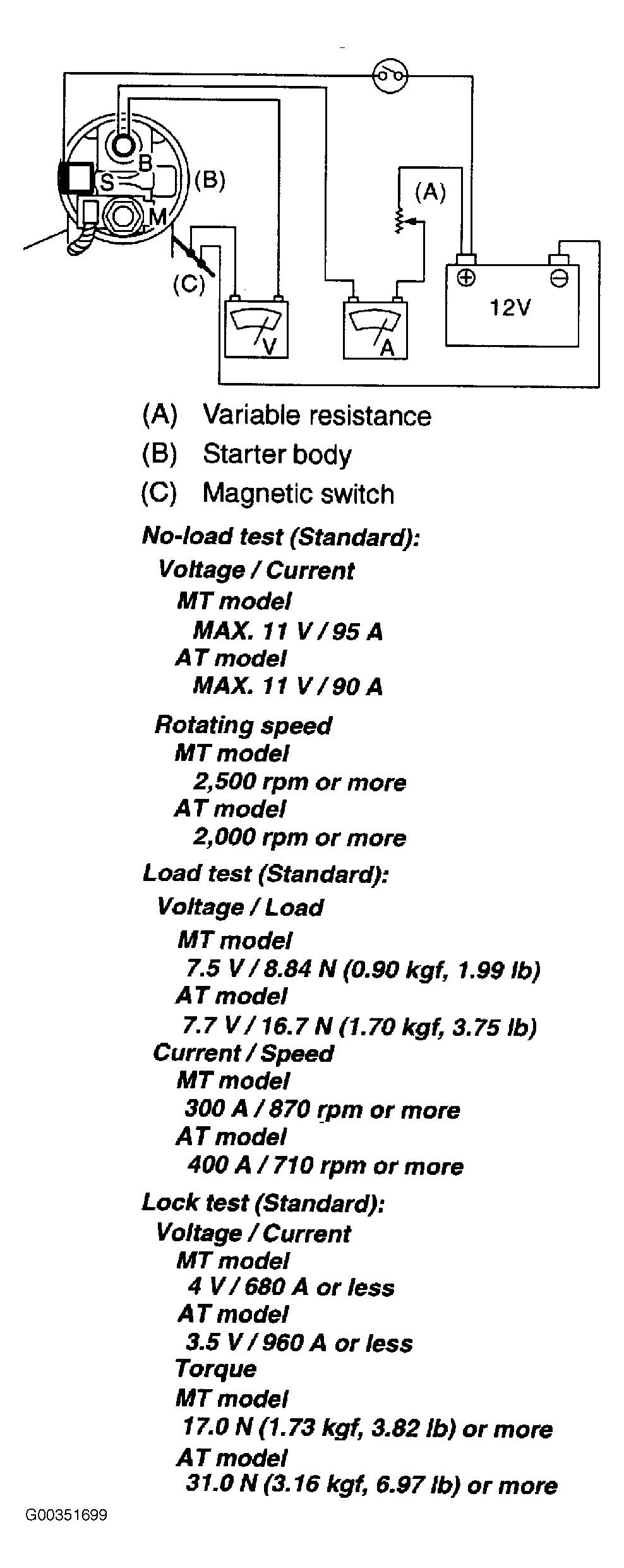

Fig 1: Measuring No-Load, Load & Lock Test

Courtesy of SUBARU OF AMERICA, INC.
