Main Relay: Removal

Download the full database via torrent (~1.1 TB)
  1. Disconnect the ground cable from battery.

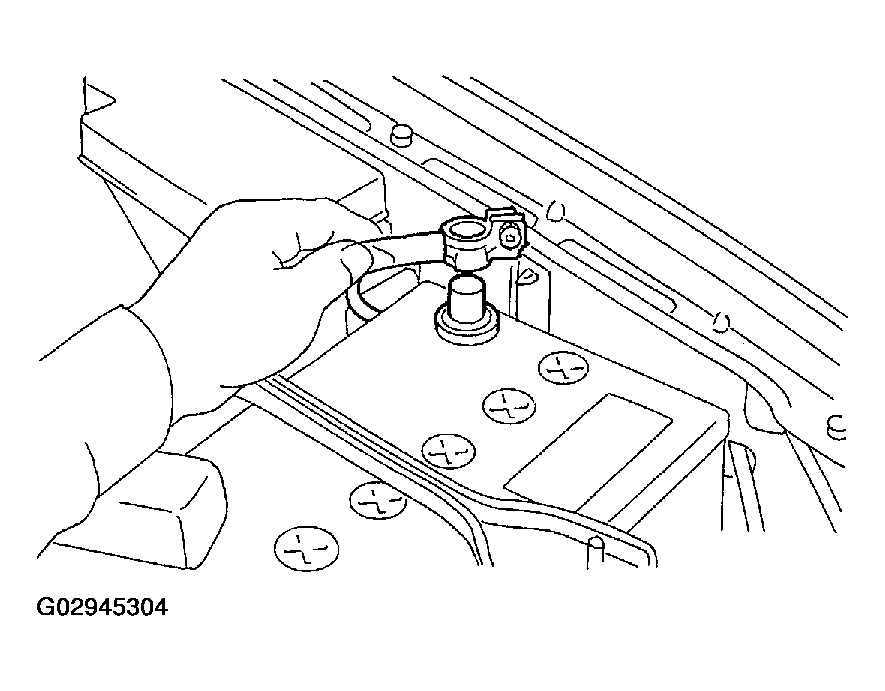

    Fig 1: Disconnecting Ground Cable From Battery
    G02945304Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the passenger's side front side sill cover.
  3. Remove the bolt which holds main bracket on the body.
  4. Disconnect the connectors from the main relay.

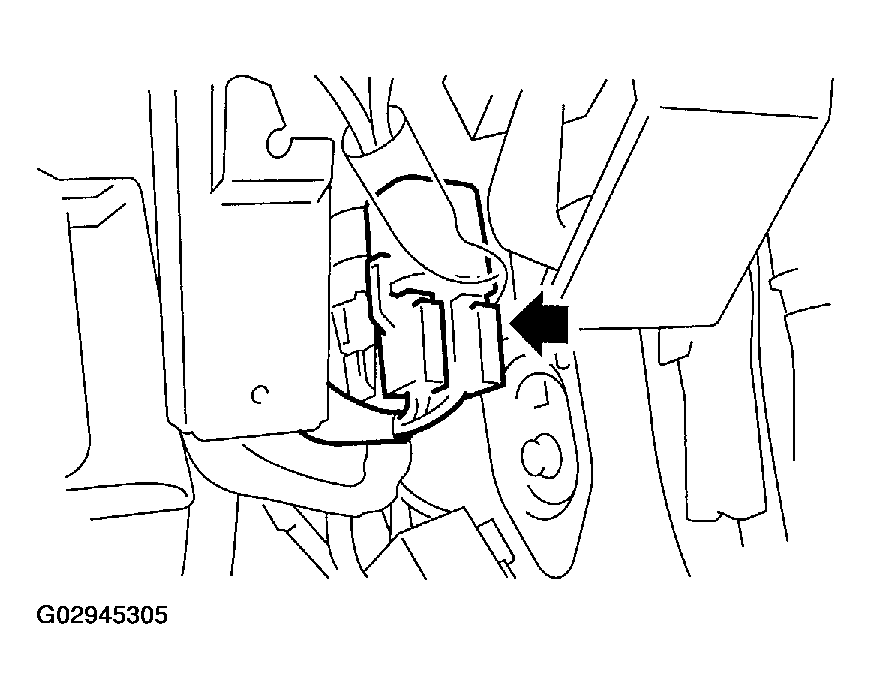

    Fig 2: Locating Connector For Disconnection
    G02945305Courtesy of SUBARU OF AMERICA, INC.
