Control Module Schematic
Control Module Schematic
Download the full database via torrent (~1.1 TB)

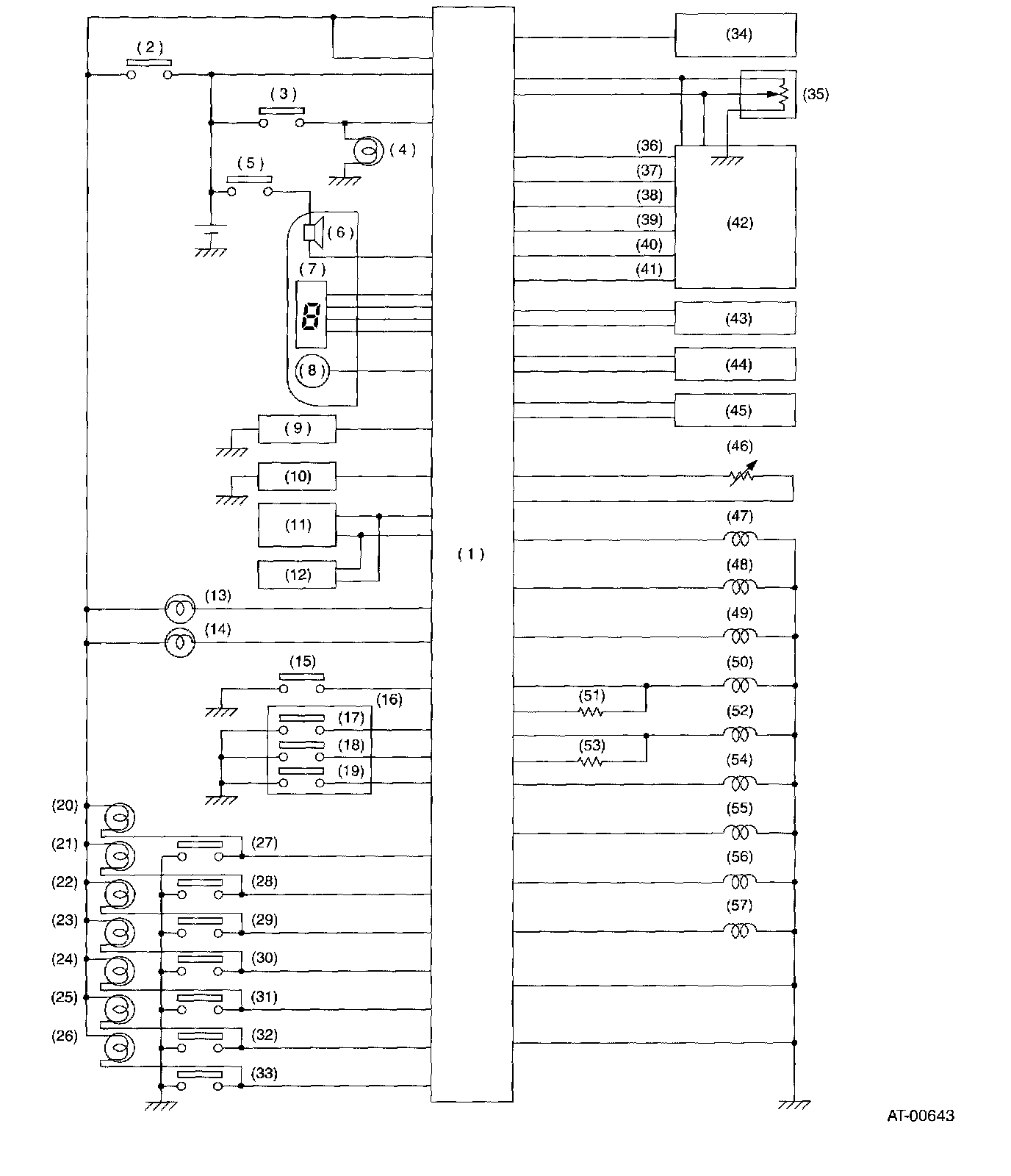

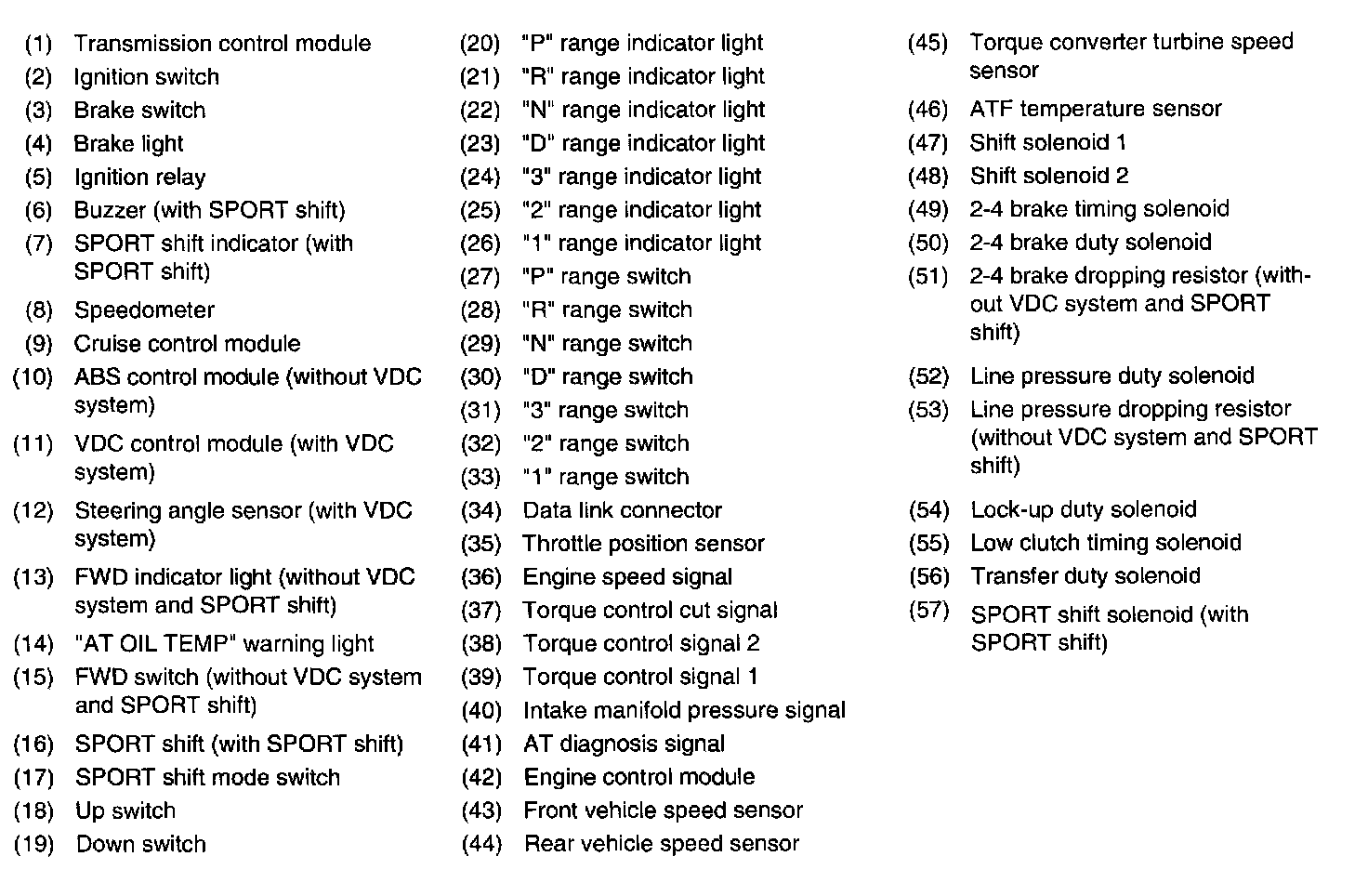

Transmission Control Module (TCM) 1/0 Signal
SCHEMATIC
