Bench Testing: Bearing

Download the full database via torrent (~1.1 TB)
  1. Rotate bearing by hand; no binding should exist.
  2. Rotate bearing rapidly; no abnormal noise should be heard. See Fig 1.

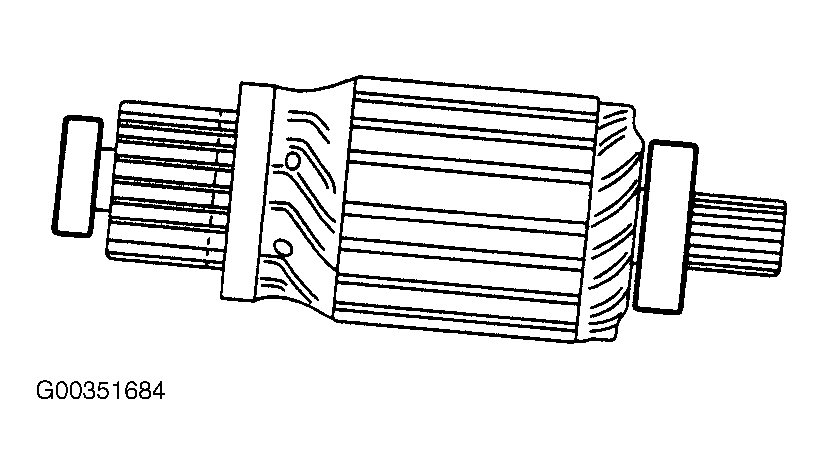

Fig 1: Identifying Starter Bearing Locations
G00351684Courtesy of SUBARU OF AMERICA, INC.
