System Diagram

Download the full database via torrent (~1.1 TB)
COMPONENT

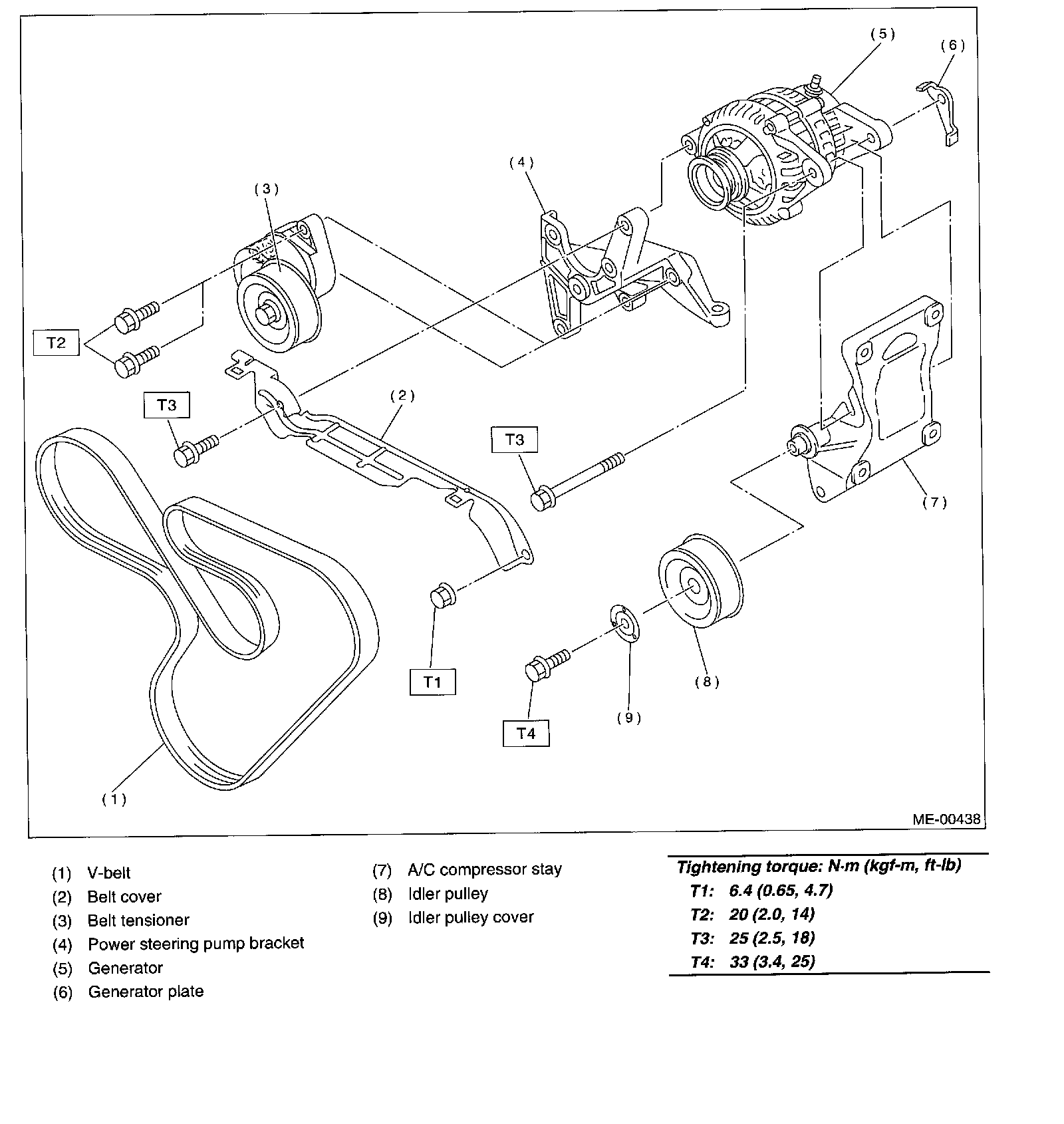

V-BELT

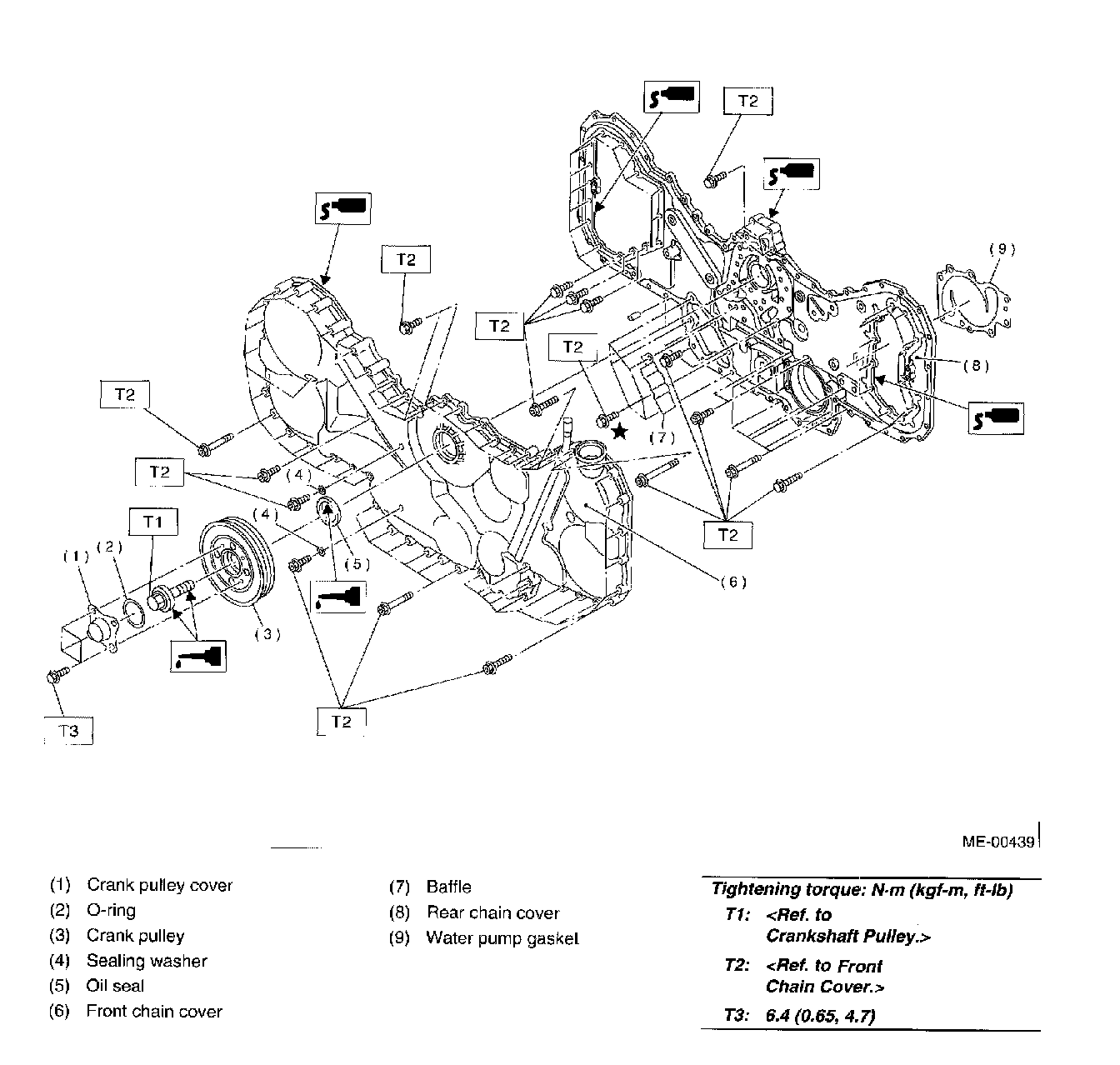

TIMING CHAIN COVER

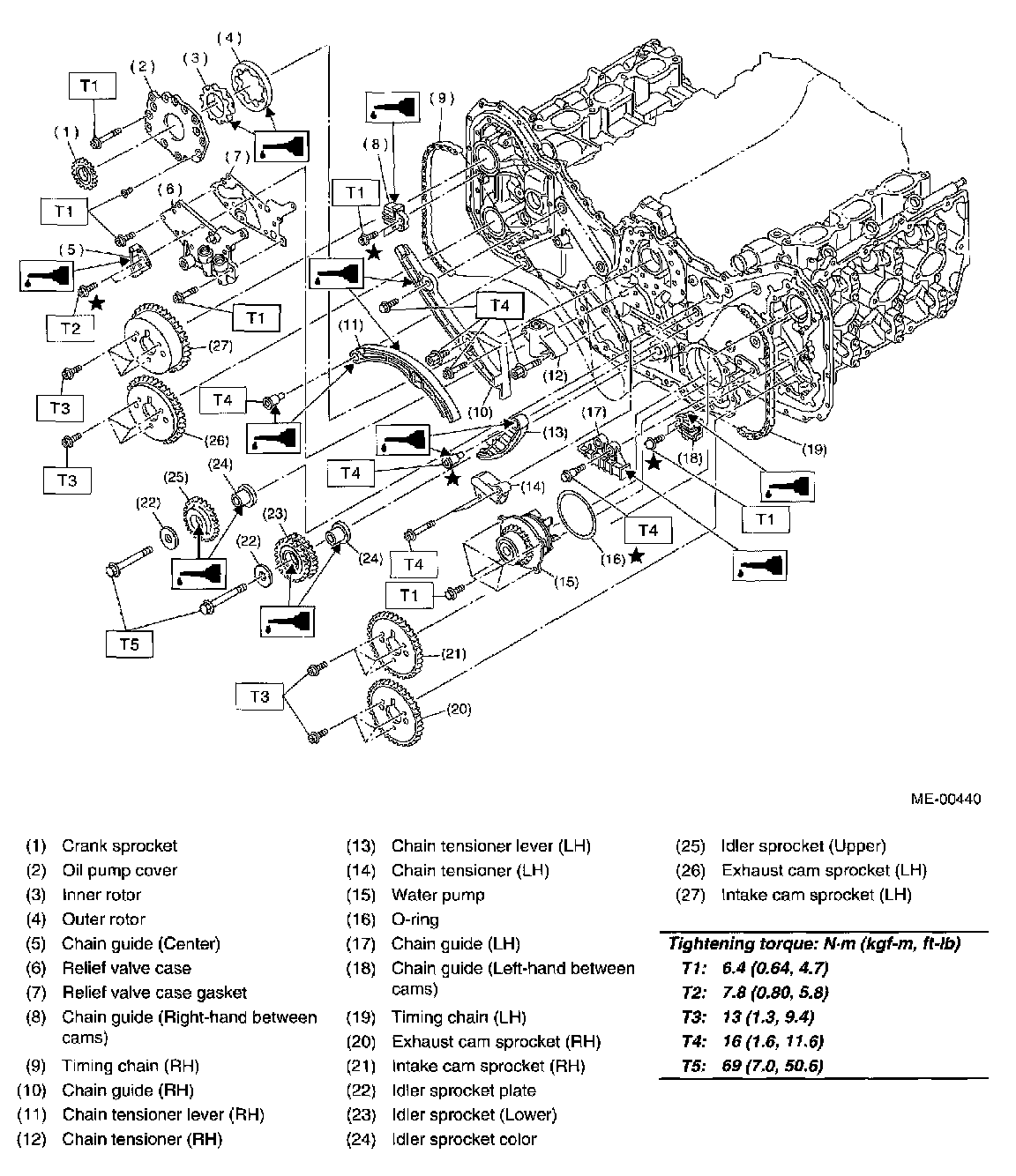

TIMING CHAIN

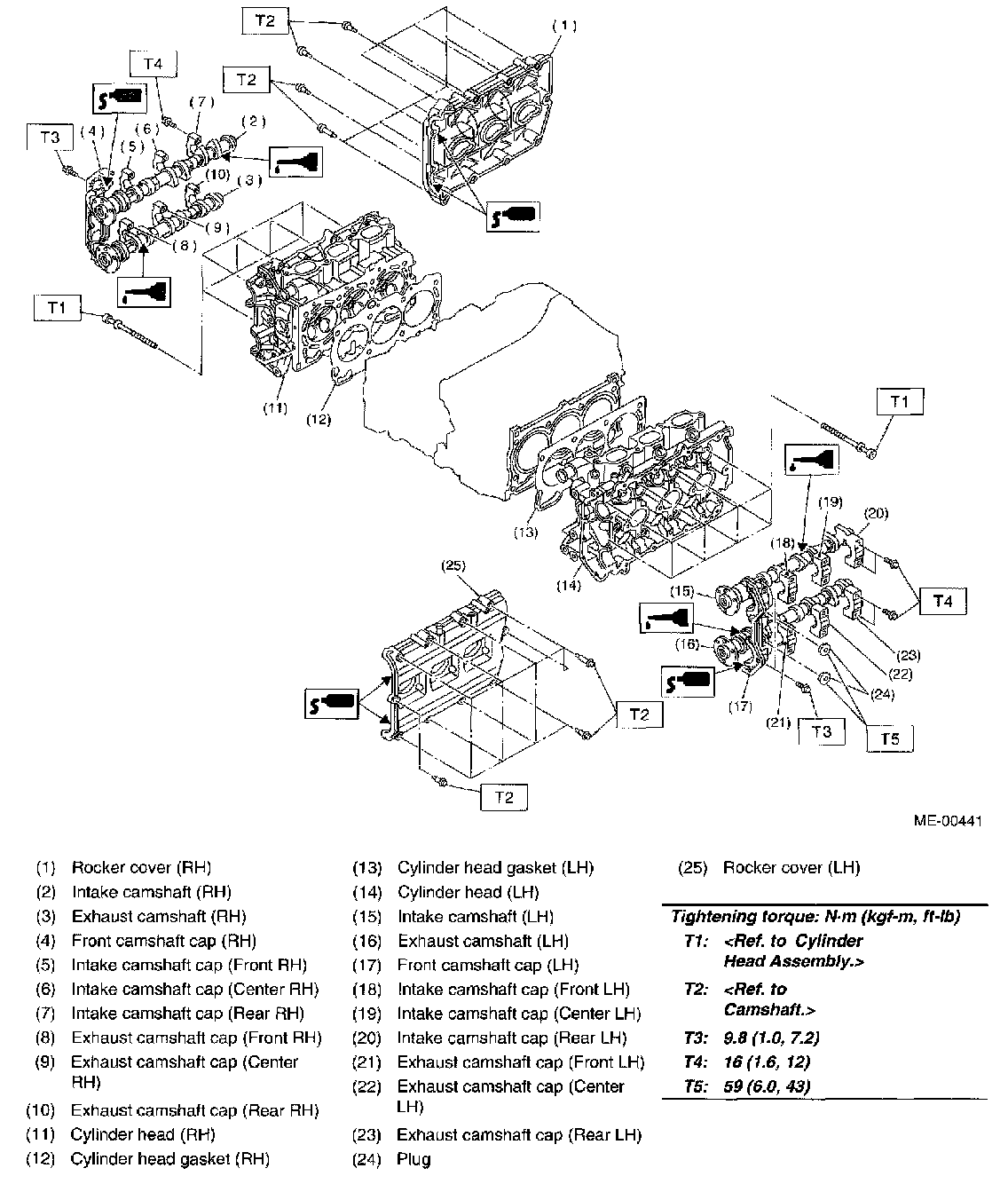

CYLINDER HEAD AND CAMSHAFT

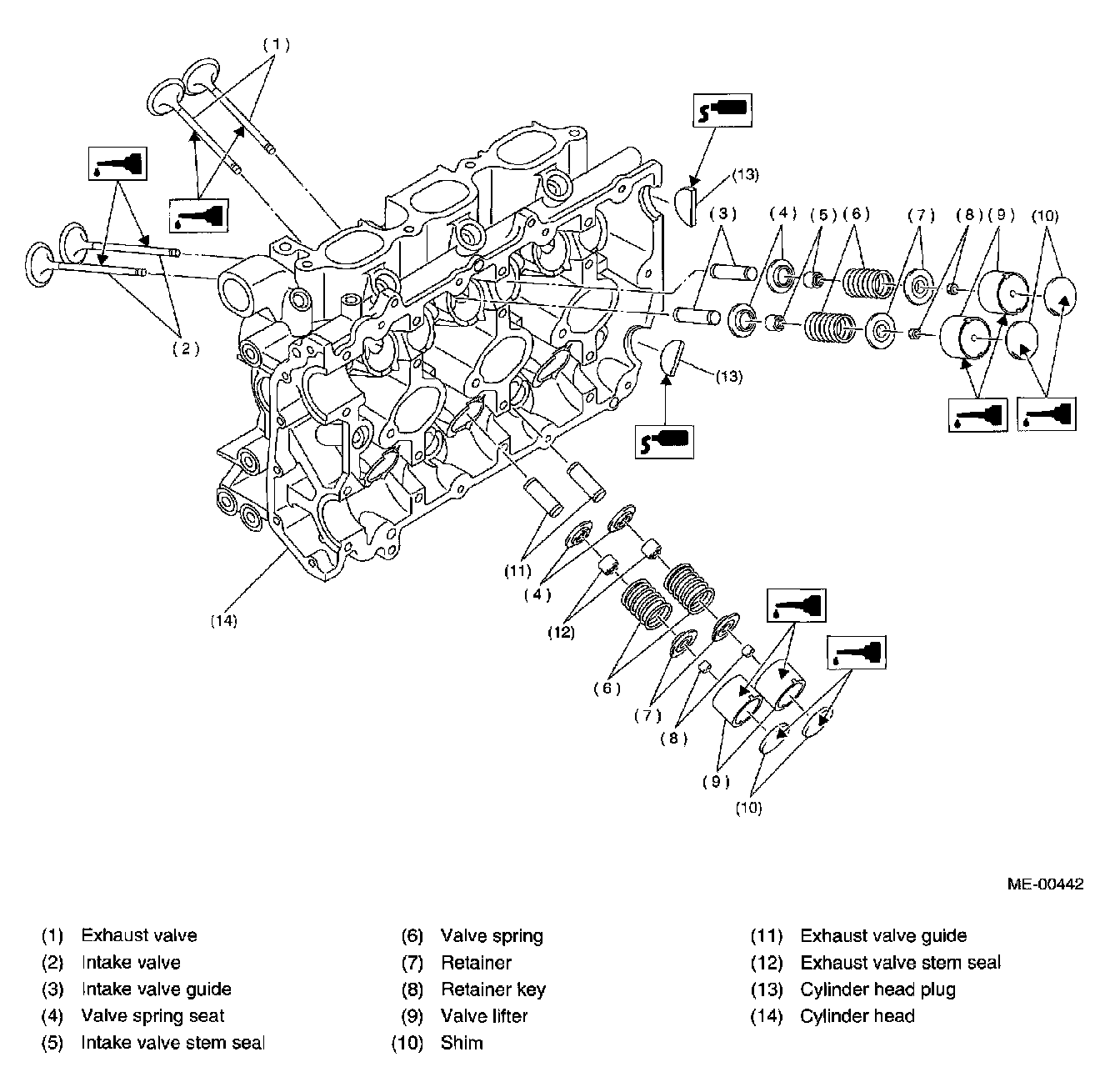

CYLINDER HEAD AND VALVE ASSEMBLY








CYLINDER BLOCK





CRANKSHAFT AND PISTON

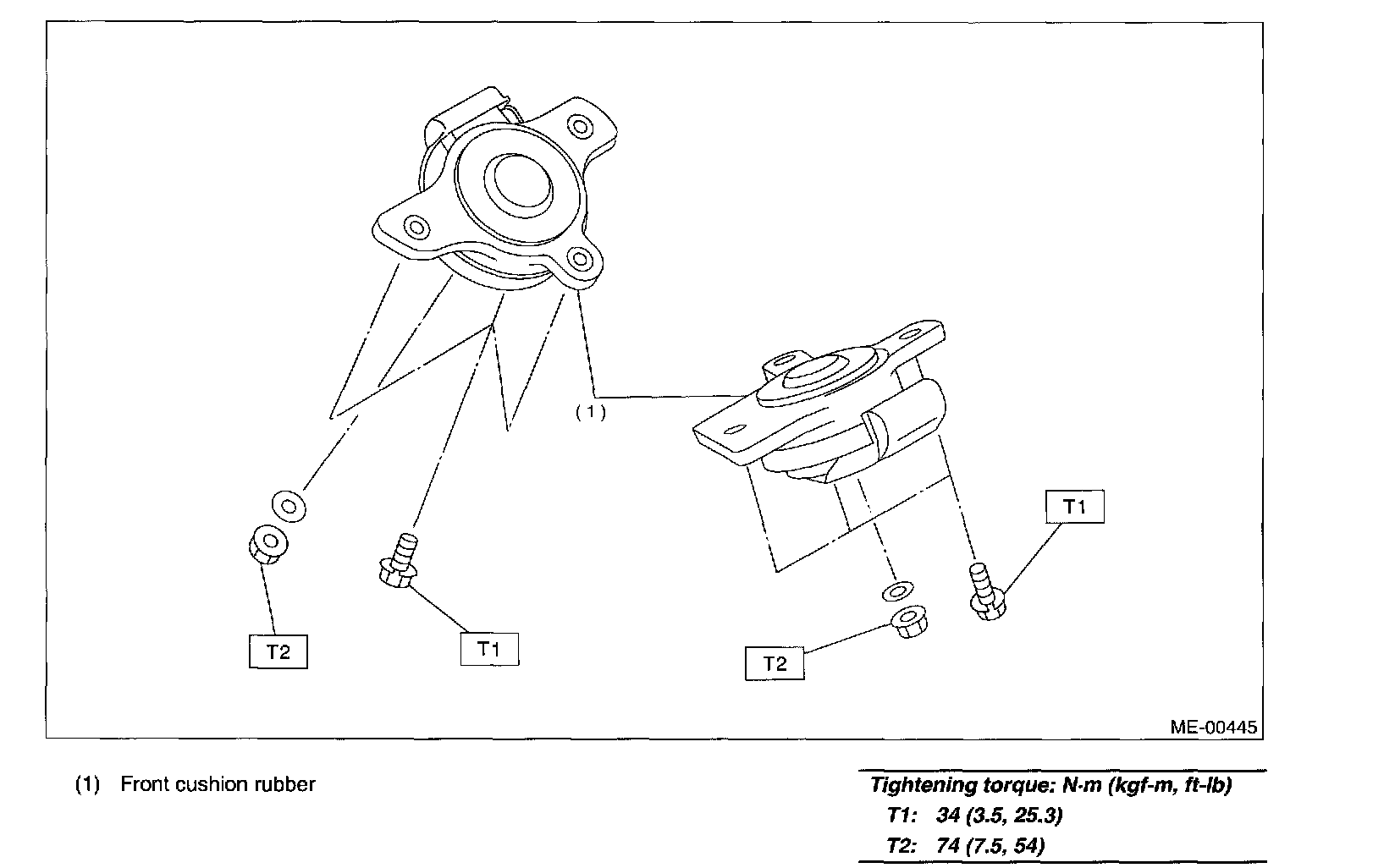

ENGINE MOUNTING
