System Specifications

Download the full database via torrent (~1.1 TB)

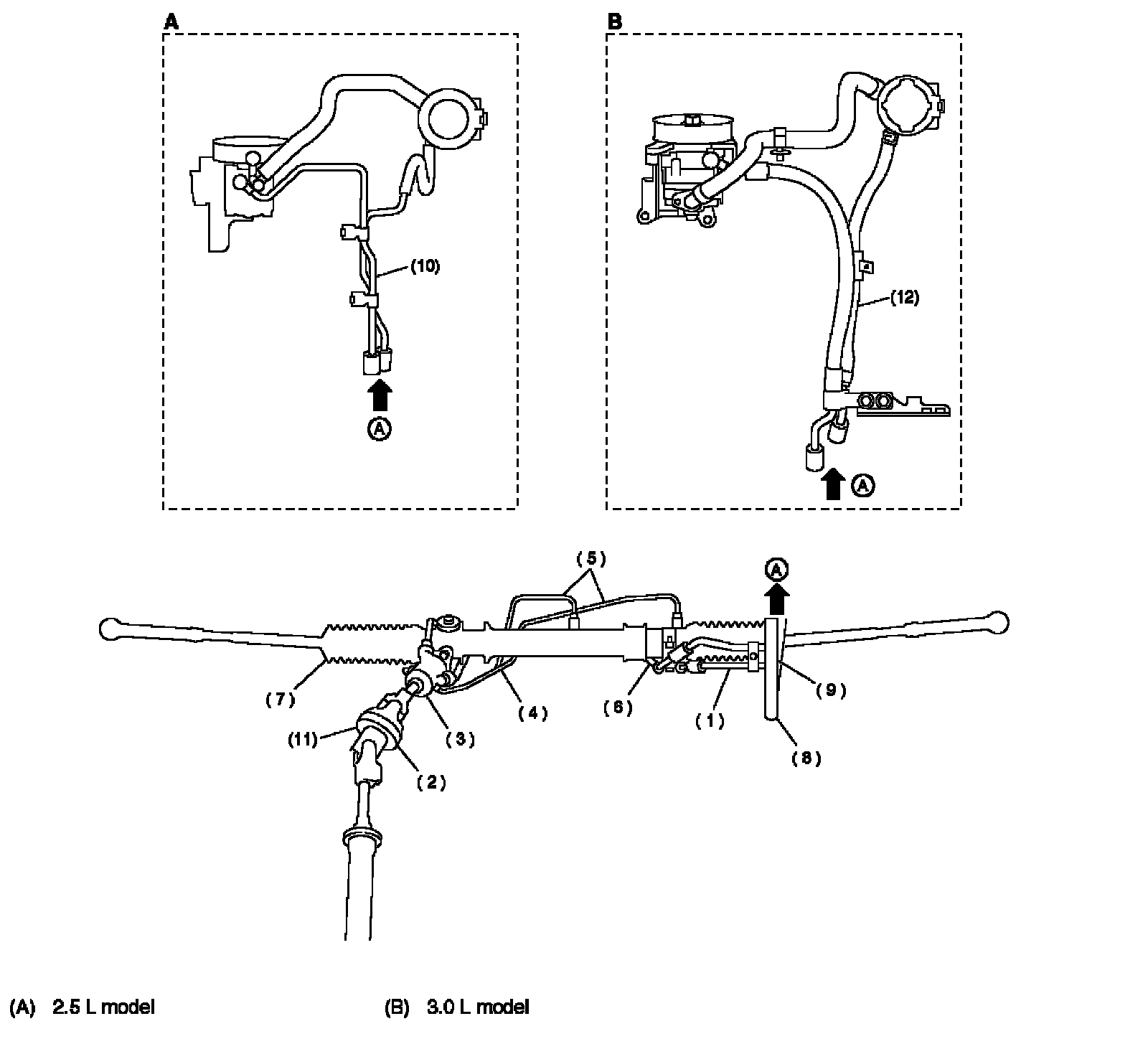

POWER STEERING Part 1:




POWER STEERING Part 2:

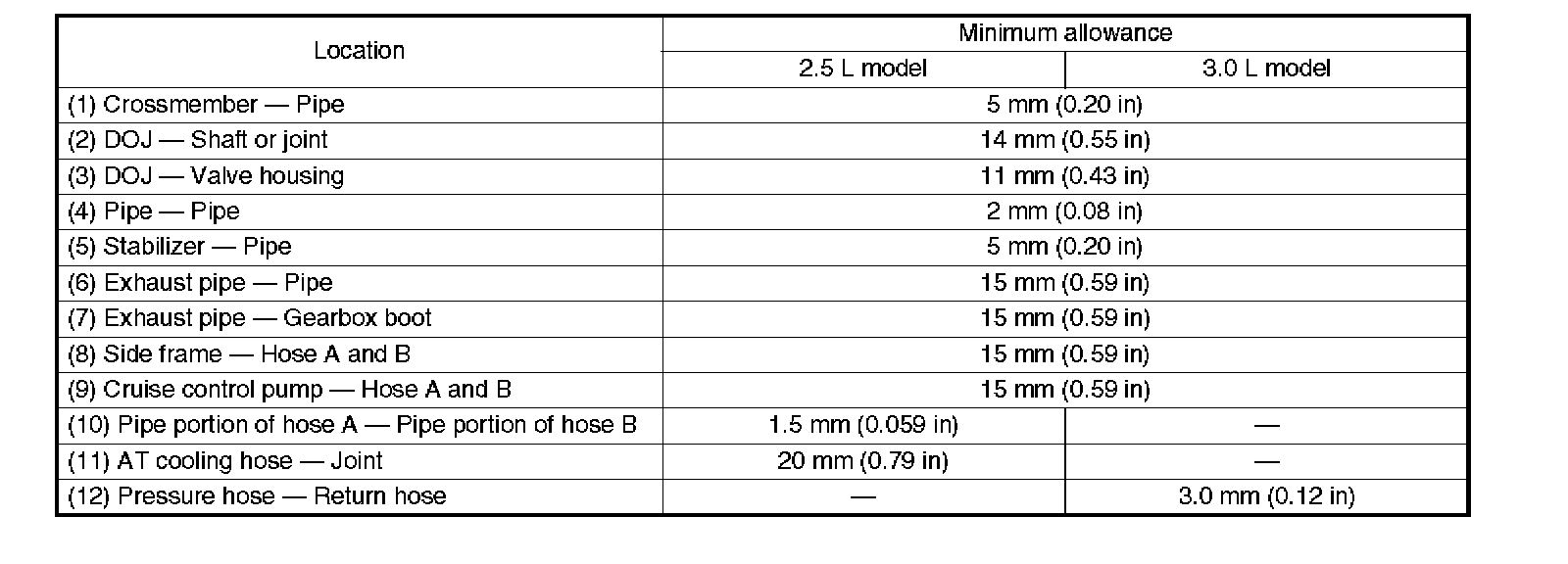

CAUTION: This table lists various clearances that must be correctly adjusted to ensure normal vehicle driving without interfering noise, or any other faults.
