Throttle Position Sensor: Removal

Download the full database via torrent (~1.1 TB)
  1. Disconnect ground cable from battery.

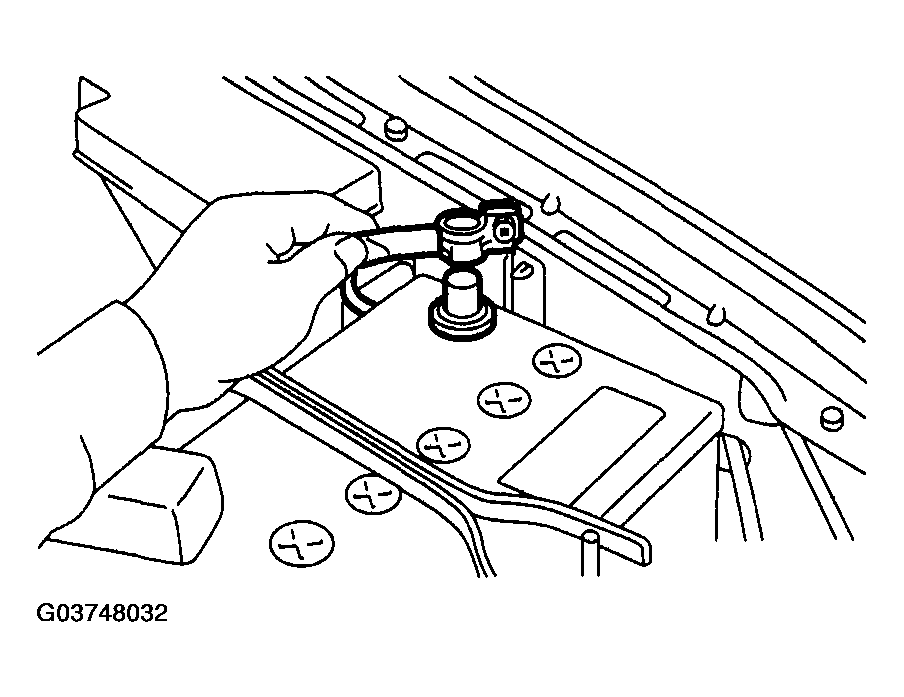

    Fig 1: Disconnecting Ground Cable From Battery
    G03748032Courtesy of SUBARU OF AMERICA, INC.
  2. Disconnect connector from throttle position sensor.

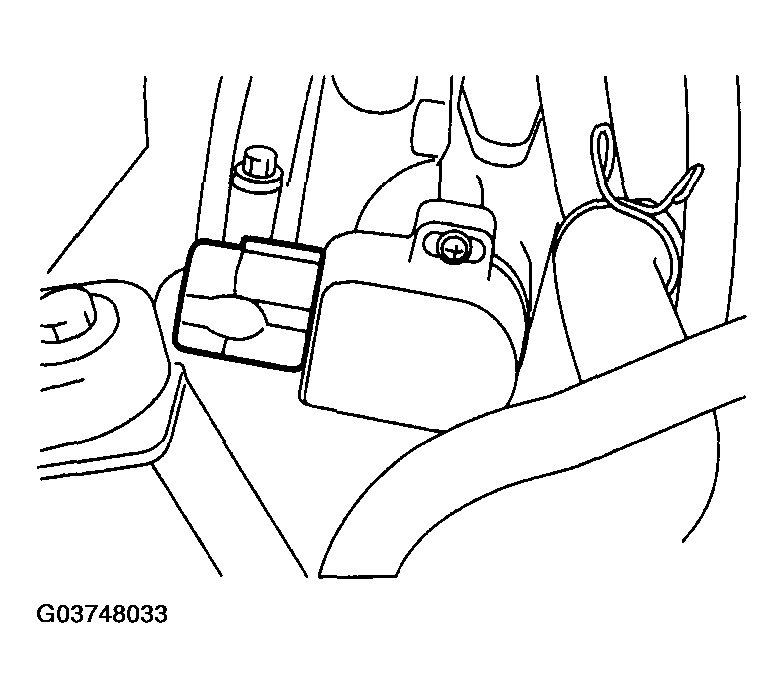

    Fig 2: Disconnecting Connector From Throttle Position Sensor
    G03748033Courtesy of SUBARU OF AMERICA, INC.
  3. Remove throttle position sensor holding screws, and remove it.

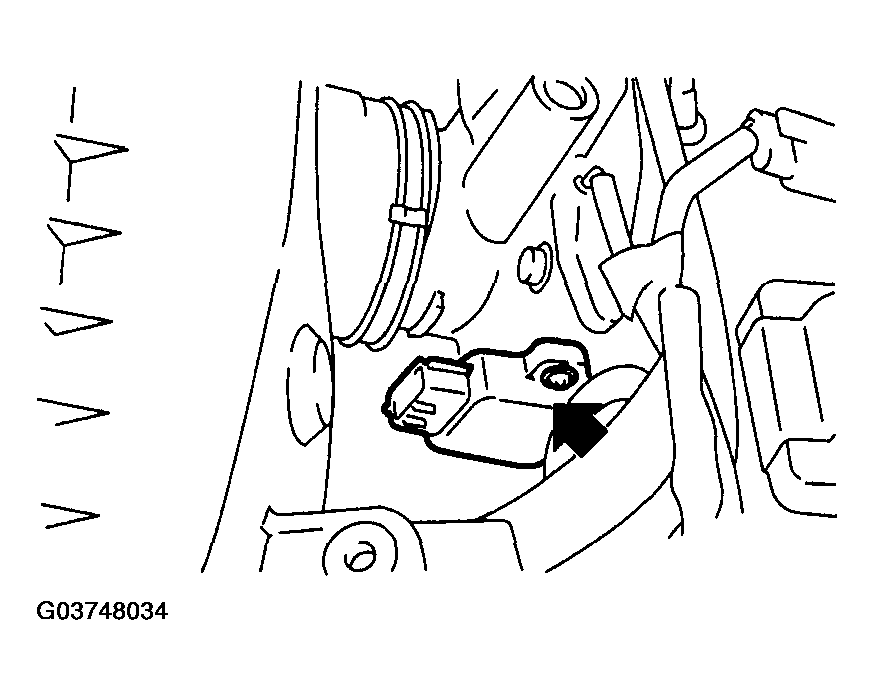

    Fig 3: Removing Throttle Position Sensor Holding Screws
    G03748034Courtesy of SUBARU OF AMERICA, INC.
