Accelerator Pedal: Disassembly

Download the full database via torrent (~1.1 TB)
  1. Remove the clip, and then remove the accelerator pedal from the bracket.
  2. Pull out the spring pin, and then remove the accelerator pedal from the accelerator pedal lever.

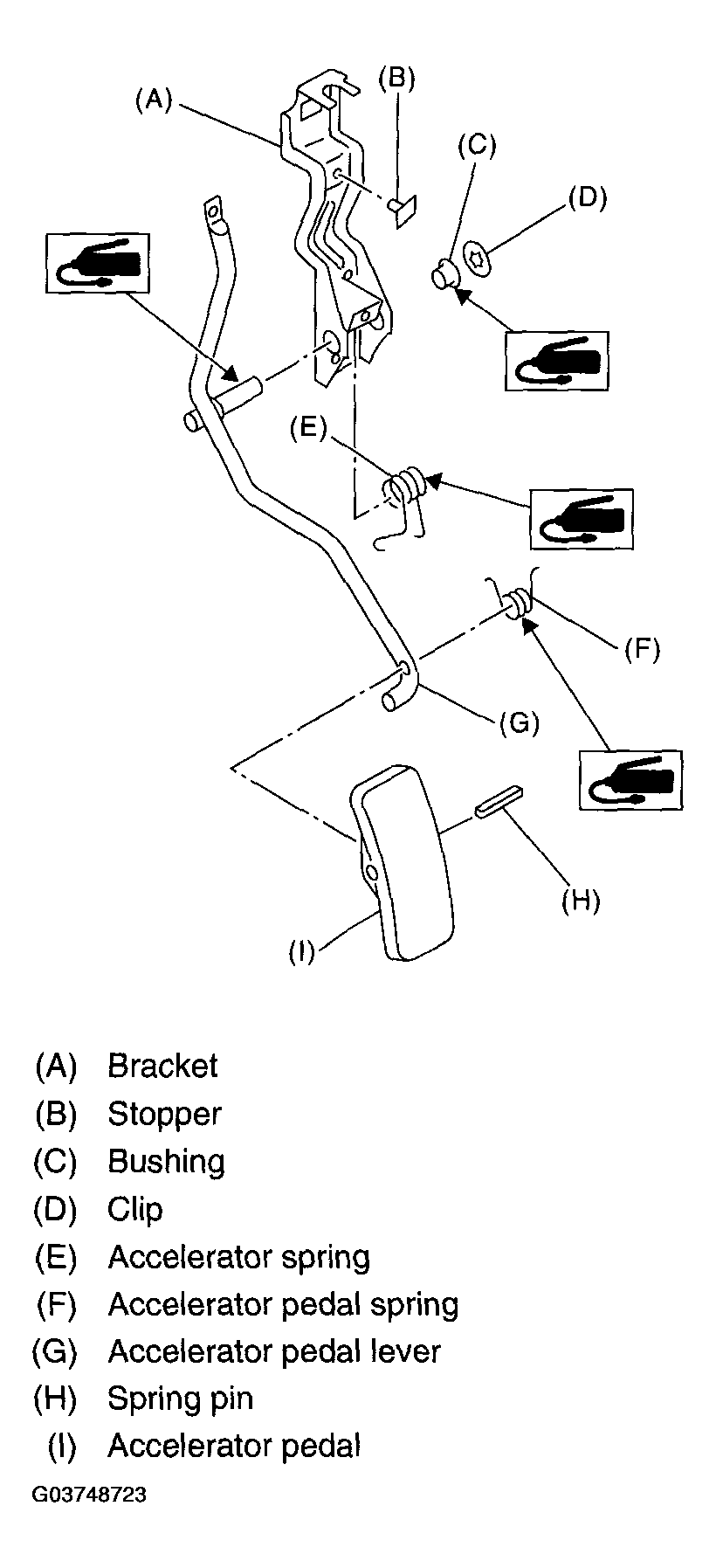

    Fig 1: Identifying Accelerator Pedal Components
    G03748723Courtesy of SUBARU OF AMERICA, INC.
