Keyless Entry Control Module
Keyless Entry Control Module
Download the full database via torrent (~1.1 TB)

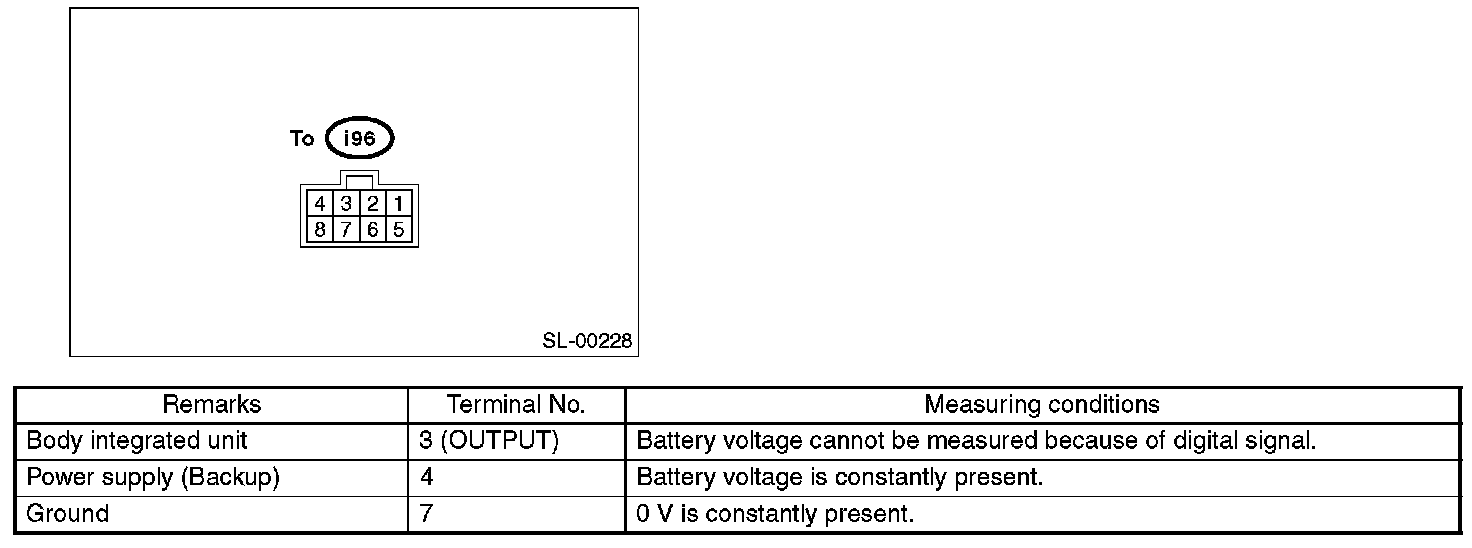

Electrical Specification:
