Home >> Subaru >> 2005 >> Outback F6-3.0L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> System Diagram >> Timing Chain

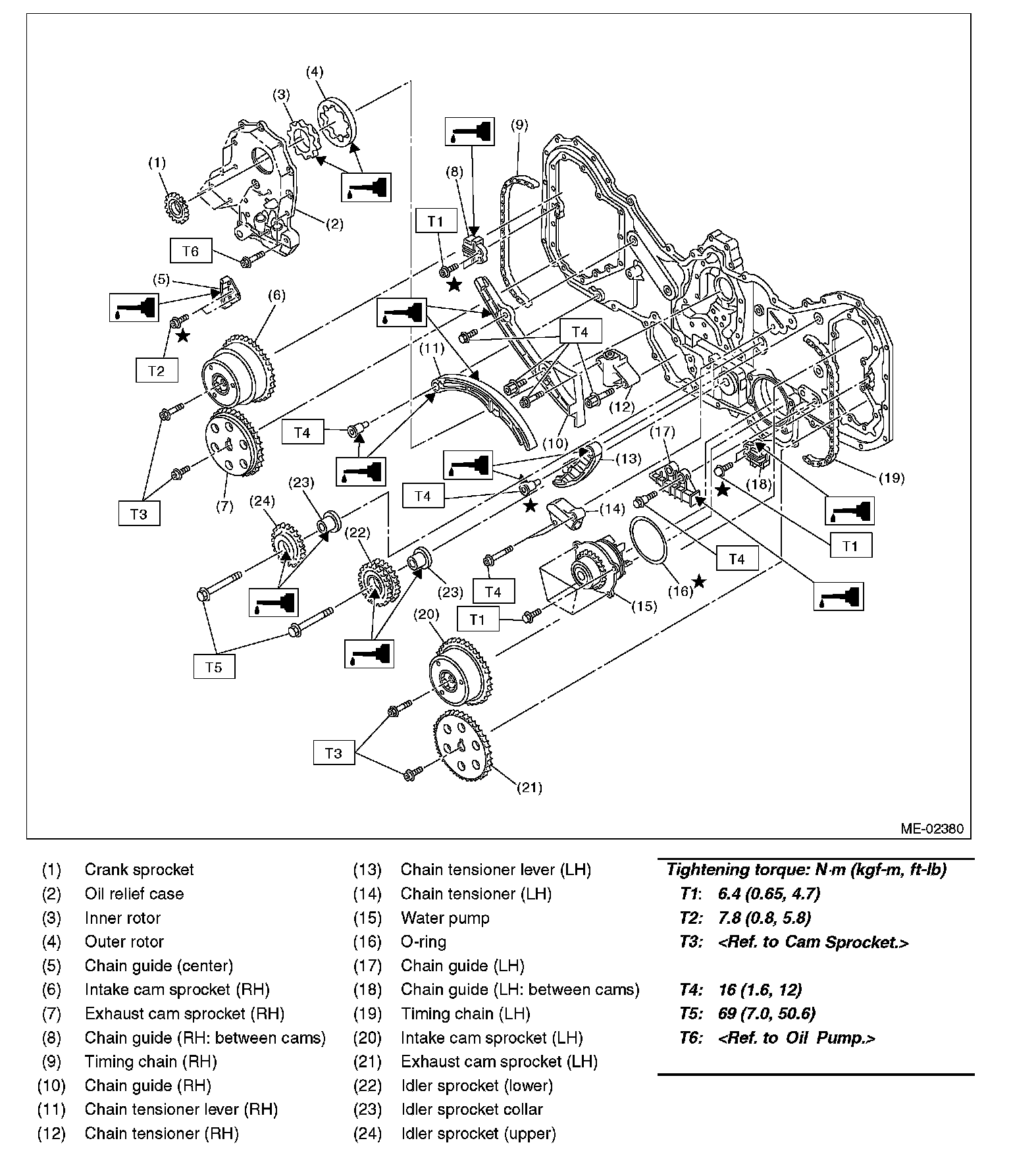

Timing Chain
