General Description
>>
Components With Torque Specifications
>>
Fuel Line
Fuel Line
Download the full database via torrent (~1.1 TB)

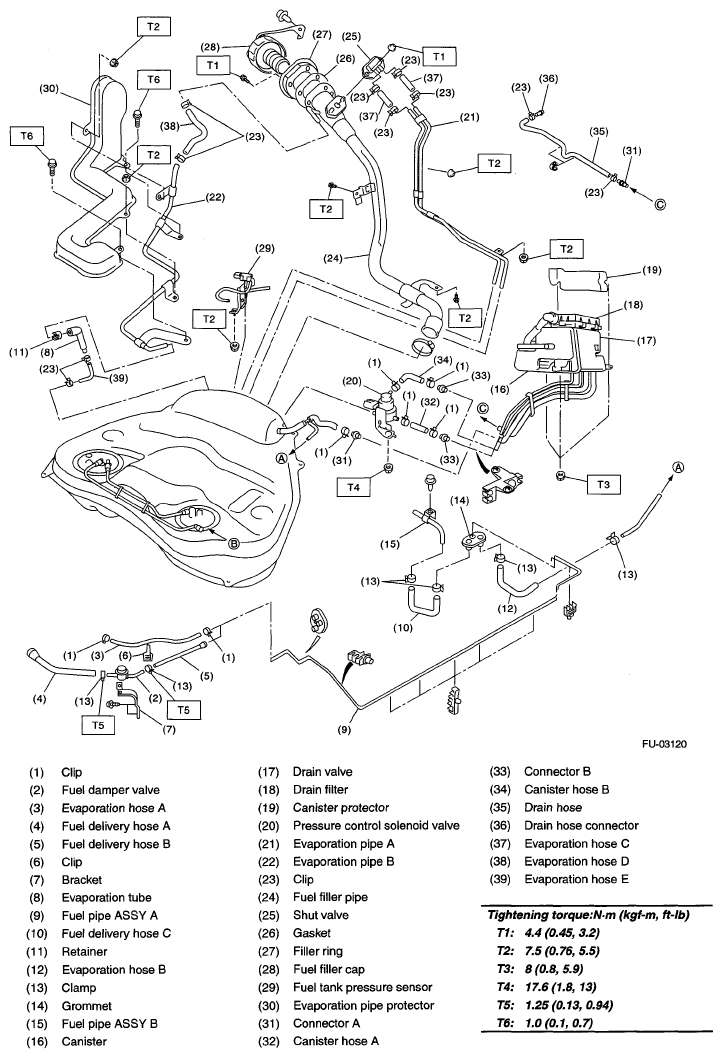

Fig 1: Fuel Line Disassembling View With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
