General Description
>>
Components With Torque Specifications
>>
Fuel Injector
Fuel Injector
Download the full database via torrent (~1.1 TB)

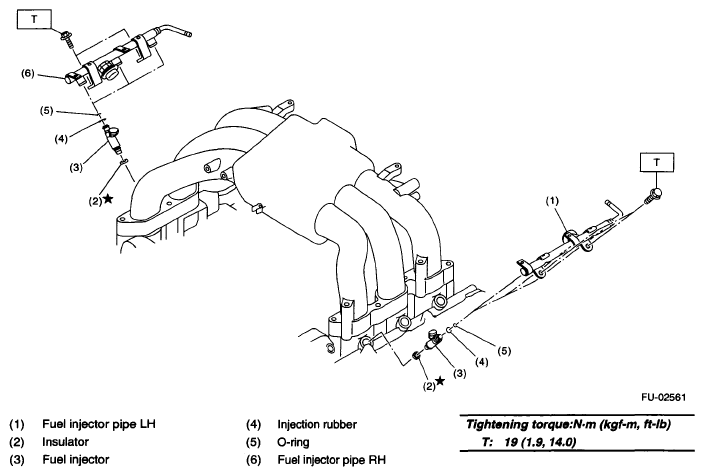

Fig 1: Exploded View Of Fuel Injector Replacement Components With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
