Main Switch

Download the full database via torrent (~1.1 TB)
  1. Remove the front door trim. Refer to DOOR TRIM .
  2. Remove the power window switch panel.
CAUTION: Do not damage the door trim with the switch panel.
  1. Insert a sheet of protective paper (a) between switch panel and door trim.
  2. Remove the screws and disconnect the connector.
  3. Disconnect the claws and then remove the power window switch panel.

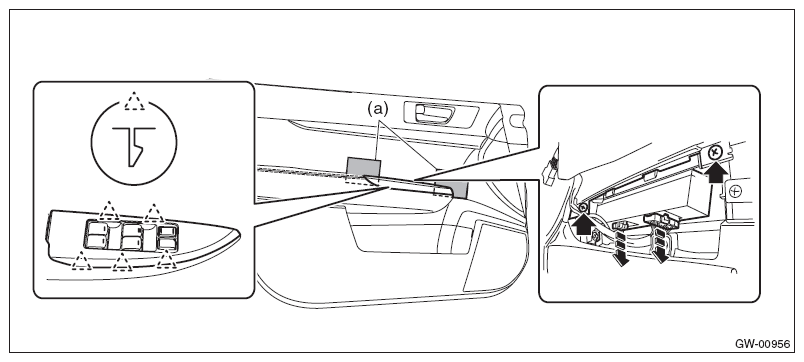

    Fig 1: Inserting Sheet Of Protective Paper Between Switch Panel And Door Trim
    G07916328Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the screws and remove the power window main switch.
    Fig 2: Locating Power Window Main Switch And Screws
    G06653691Courtesy of SUBARU OF AMERICA, INC.
