Knock Control Sensor (Fa20)
>>
Unit Inspection
Unit Inspection
Download the full database via torrent (~1.1 TB)
Inspection of knock control sensor
Measure the resistance between the terminals.
Resistance
Inspection terminals
Inspection conditions
Standard value
1 - 2
20°C {68°F}
532 to 588 kΩ

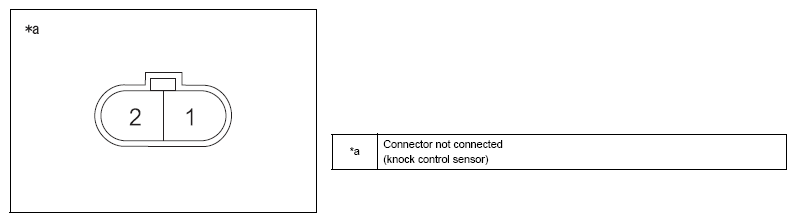

Fig 1: Knock Control Sensor Connector Terminal Identification
Courtesy of SUBARU OF AMERICA, INC.
