General Description
>>
Components With Torque Specifications
>>
Fuel Pump
Fuel Pump
Download the full database via torrent (~1.1 TB)

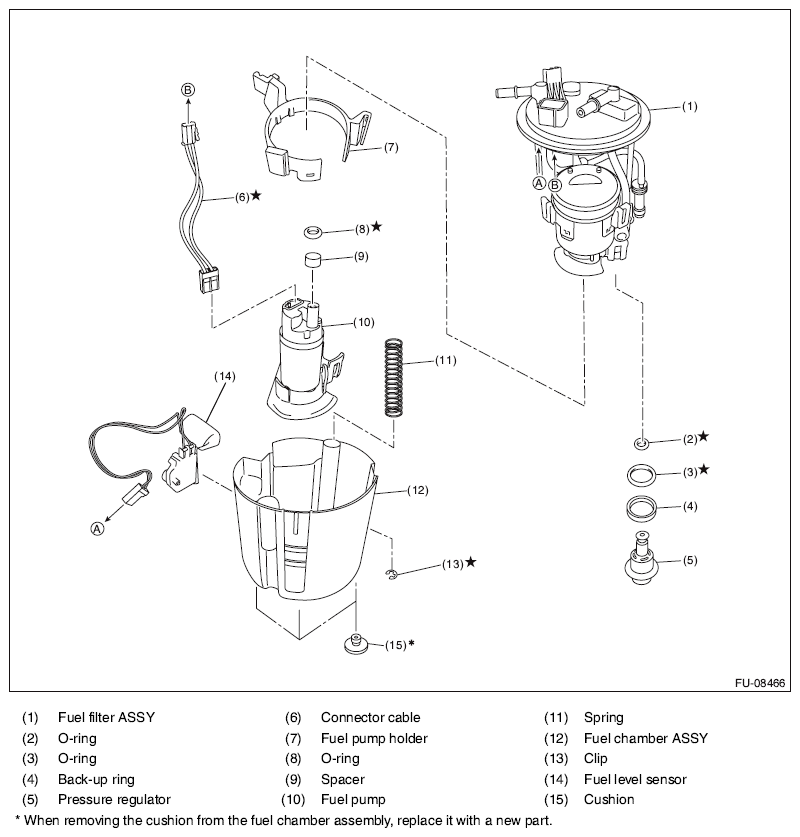

Fig 1: Identifying Fuel Pump Related Components
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
