Model Without Push Button Ignition Switch

Download the full database via torrent (~1.1 TB)

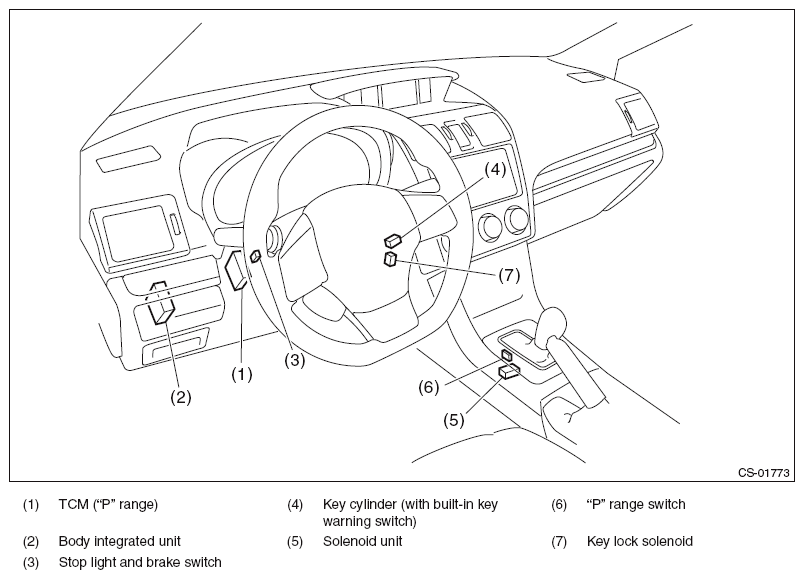

Fig 1: AT Shift Lock Control System Component Location - Model Without Push Button Ignition Switch (1 Of 2)
G10292849Courtesy of SUBARU OF AMERICA, INC.

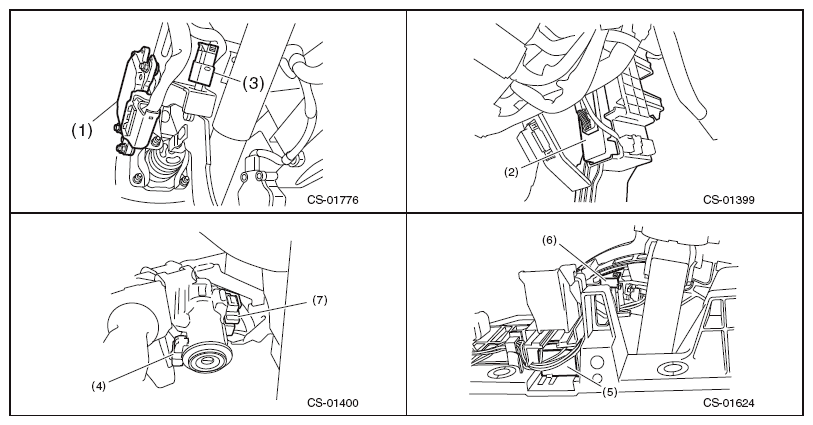

Fig 2: AT Shift Lock Control System Component Location - Model Without Push Button Ignition Switch (2 Of 2)
G10292850Courtesy of SUBARU OF AMERICA, INC.
