General Description
>>
Component With Torque Specification
Component With Torque Specification
Download the full database via torrent (~1.1 TB)

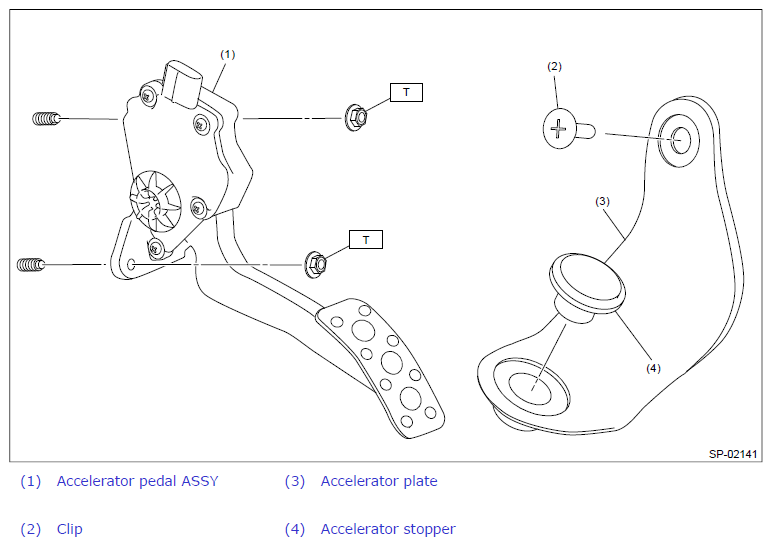

Fig 1: Accelerator Pedal Components
Courtesy of SUBARU OF AMERICA, INC.
Tightening torque: N.m (kgf-m, ft-lb)
T: 7.5 (0.8, 5.5)
Courtesy of SUBARU OF AMERICA, INC.
