Engine Wiring Harness

Download the full database via torrent (~1.1 TB)

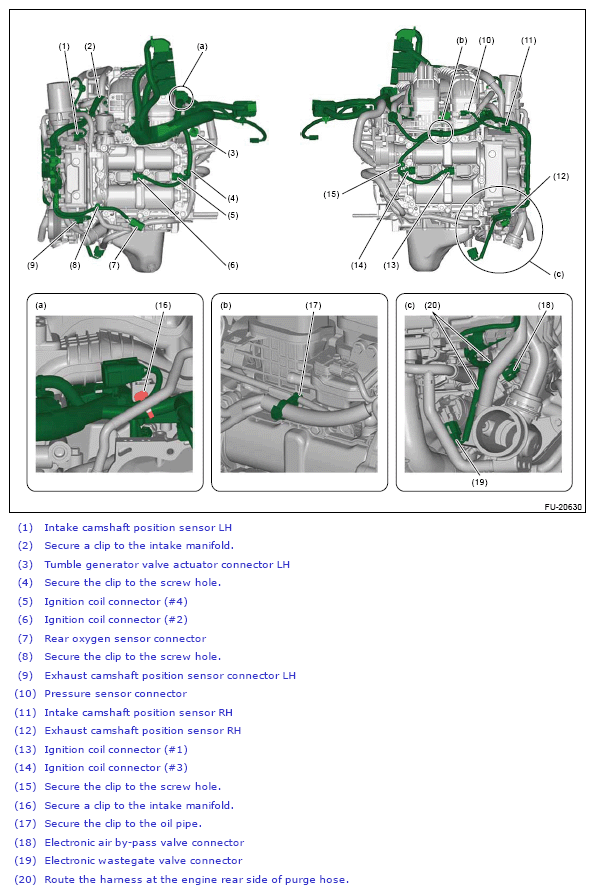

Structural diagram 1

Fig 1: Engine Wiring Harness Components Location (With Torque Specification) (Structural Diagram 1)
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 6.4 (0.7, 4.7)

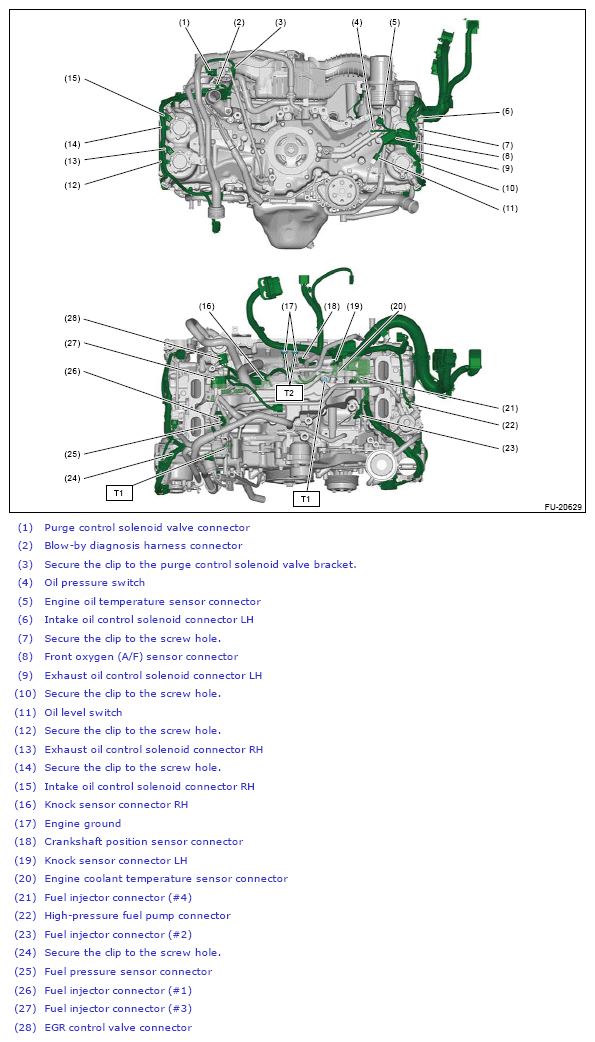

Structural diagram 2

Fig 2: Engine Wiring Harness Components Location (With Torque Specification) (Structural Diagram 2)
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6.4 (0.7, 4.7)

T2: 19 (1.9, 14.0)

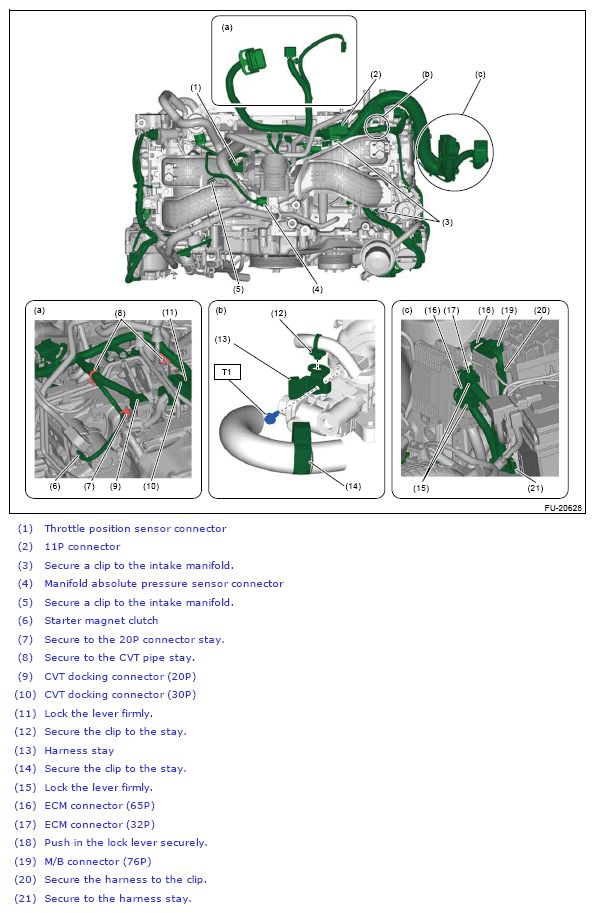

Structural diagram 3

Courtesy of SUBARU OF AMERICA, INC.
