Engine Control Module (ECM): Removal

Download the full database via torrent (~1.1 TB)
  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .

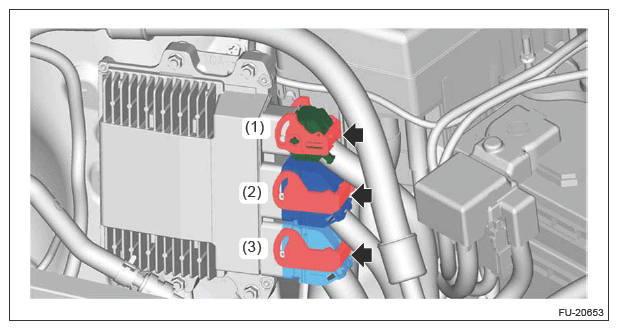

  2. Disconnect the connector in numerical order as shown in the figure.
    G13198164Courtesy of SUBARU OF AMERICA, INC.

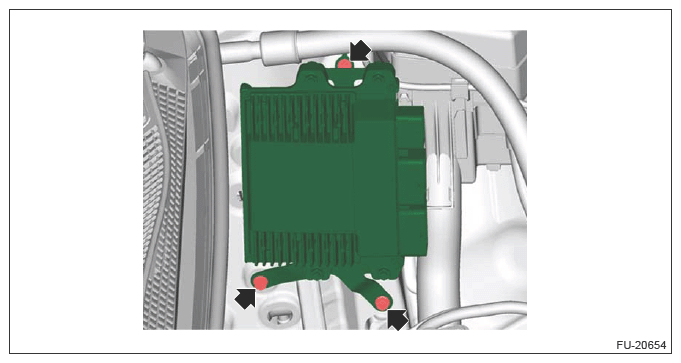

  3. Remove the ECM from vehicle.
    G13198325Courtesy of SUBARU OF AMERICA, INC.

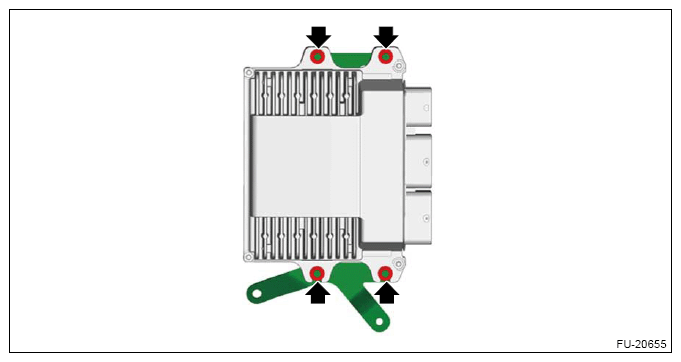

  4. Remove the ECM bracket.
    G13198326Courtesy of SUBARU OF AMERICA, INC.
