Fuel Level Sensor: Installation

Download the full database via torrent (~1.1 TB)
  1. Install the fuel level sensor to the fuel pump assembly.

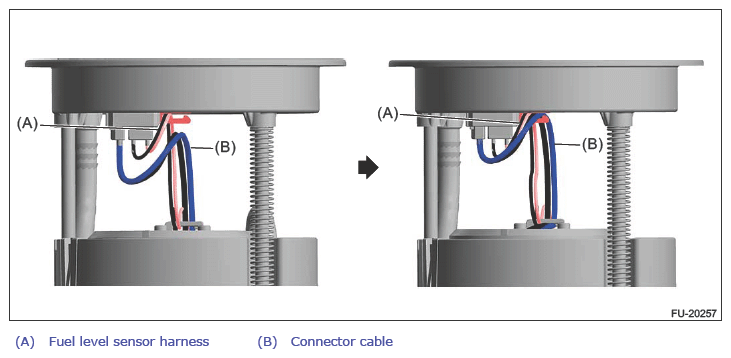

    CAUTION: Be sure to install the fuel level sensor harness to the clip first, then install the connector cable. Otherwise, malfunction may occur.
    G13866852Courtesy of SUBARU OF AMERICA, INC.
  2. Install the fuel pump assembly. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>Fuel Pump>INSTALLATION .
