Ascent Touring
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine Control System (Diagnostics - Introduction)
>>
General Description
>>

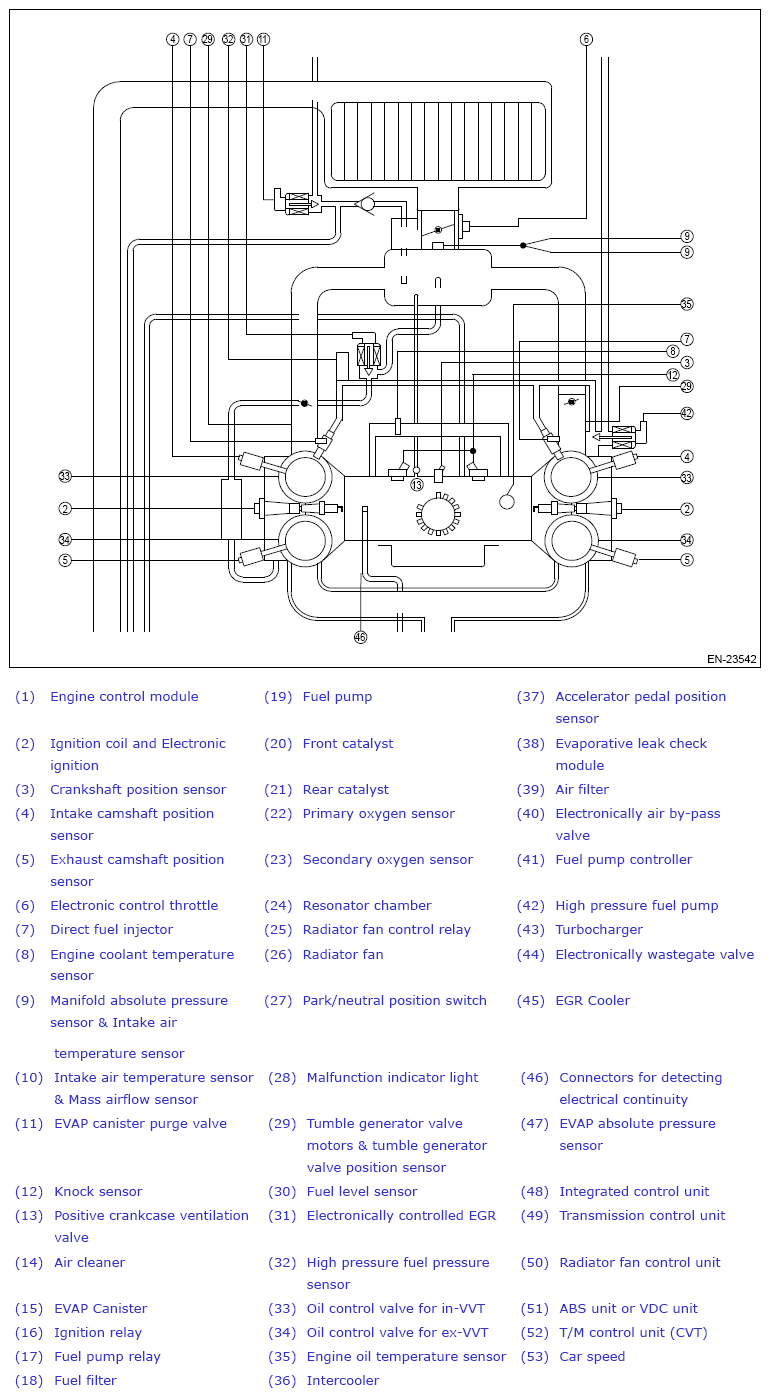

System Block Diagram

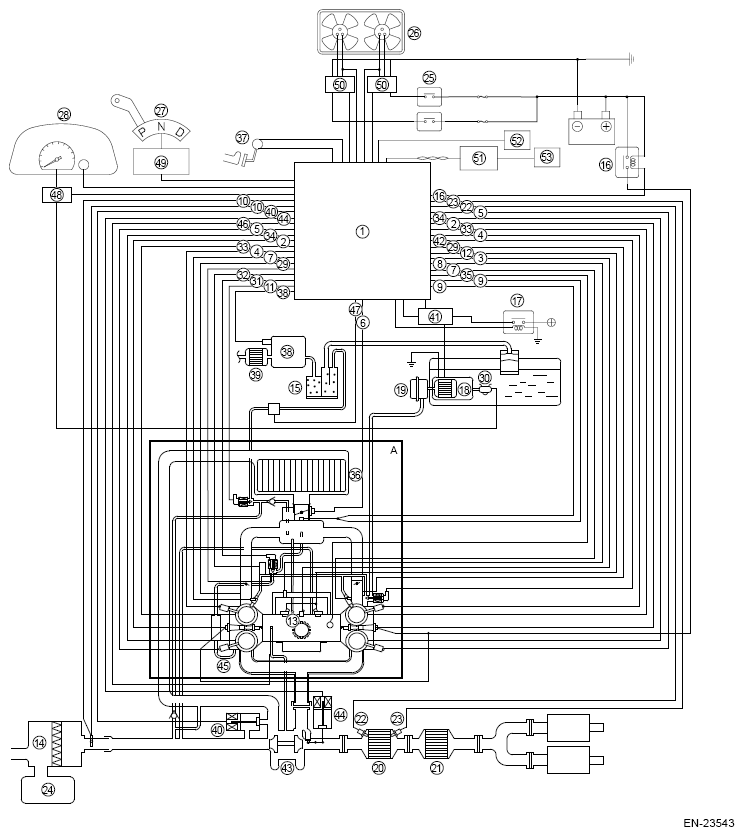

System Block Diagram
