Transmission Control Module
Download the full database via torrent (~1.1 TB)

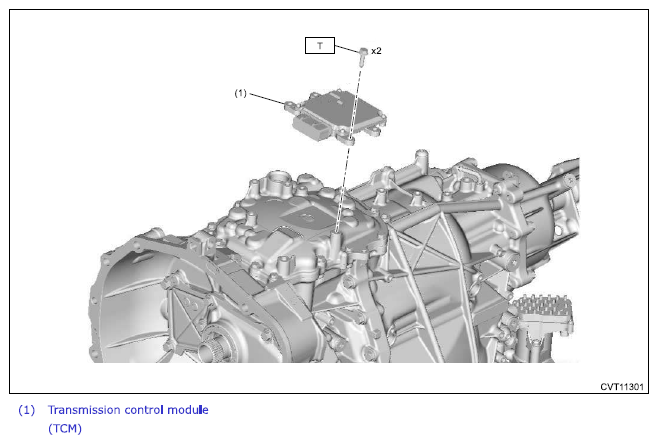

Fig 1: Transmission Control Module Component
Courtesy of SUBARU OF AMERICA, INC.
Tightening torque: N.m (kgf-m, ft-lb)
T: 7 (0.7, 5.3)
Courtesy of SUBARU OF AMERICA, INC.
