Knock Sensor: Inspection

Download the full database via torrent (~1.1 TB)
  1. Check that the knock sensor has no deformation, cracks or other damages.

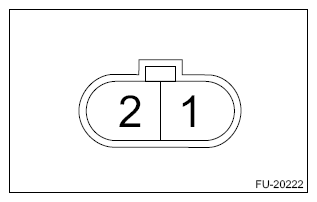

  2. Measure the resistance between knock sensor terminals.
G13947217Courtesy of SUBARU OF AMERICA, INC.
Terminal No. Standard
1 and 2 560±28 kΩ
