Fuel Injector: Inspection

Download the full database via torrent (~1.1 TB)
  1. Check that the fuel injector has no deformation, cracks or other damages.

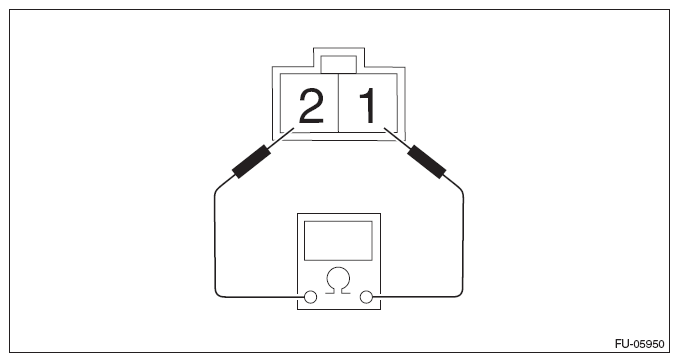

  2. Measure the resistance between fuel injector terminals.
    G08315385Courtesy of SUBARU OF AMERICA, INC.
    Terminal No. Standard
    1 and 2 Approx. 2.1 Ω (when 20°C (68°F))
