RH Side
RH Side
Download the full database via torrent (~1.1 TB)
Install in the reverse order of removal.
NOTE:
Use new O-rings, rubbers and seal rings.

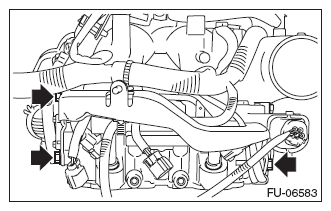

Tightening torque:
19 N.m (1.9 kgf-m, 14.0 ft-lb)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
