Accelerator Stopper
Accelerator Stopper
Download the full database via torrent (~1.1 TB)

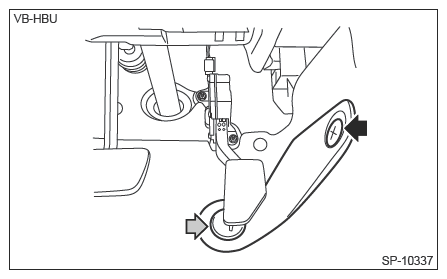

Remove the clip and accelerator stopper, and then remove the accelerator plate.
NOTE:
Pulling out the accelerator stopper may damage the inside. Remove it by rotating it counterclockwise.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
