Throttle Body

Download the full database via torrent (~1.1 TB)

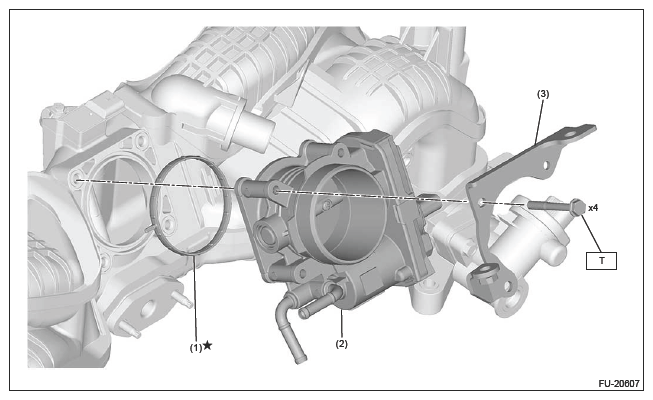

Fig 1: Throttle Body Components Location

G16383967

Courtesy of SUBARU OF AMERICA, INC.

(1)	Gasket
(2)	Throttle body
(3)	Throttle body stay

Tightening torque: N.m (kgf-m, ft-lb)

T: 8 (0.8, 5.9)
