Visual Inspection

Download the full database via torrent (~1.1 TB)

Perform a visual inspection of all electrical wiring. Look for chafed, stretched, cut or pinched wiring. Inspect electrical connectors and connections for a clean, tight fit. Repair as necessary. Inspect all vacuum hoses for proper routing, cuts or pinches. If necessary, see VACUUM DIAGRAMS section to verify correct routing and connections. Repair as necessary. Inspect air induction system for possible vacuum leaks or obstructions in air cleaner (ice, mud, etc.).

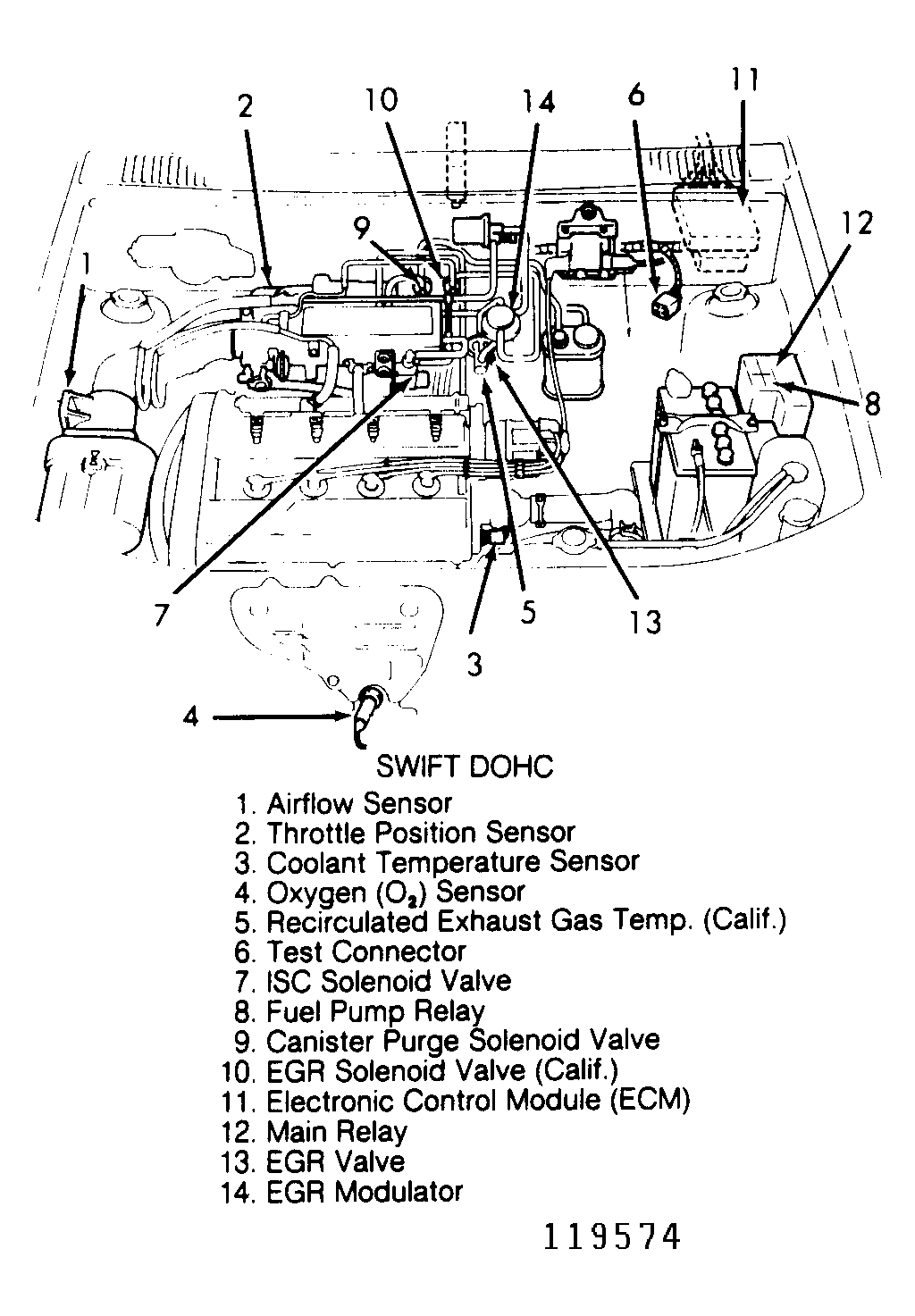

Fig 1: Electronic Control System (Swift shown, other models similar)
G119574Courtesy of SUZUKI OF AMERICA CORP.
