Component Location Graphics

Download the full database via torrent (~1.1 TB)
NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

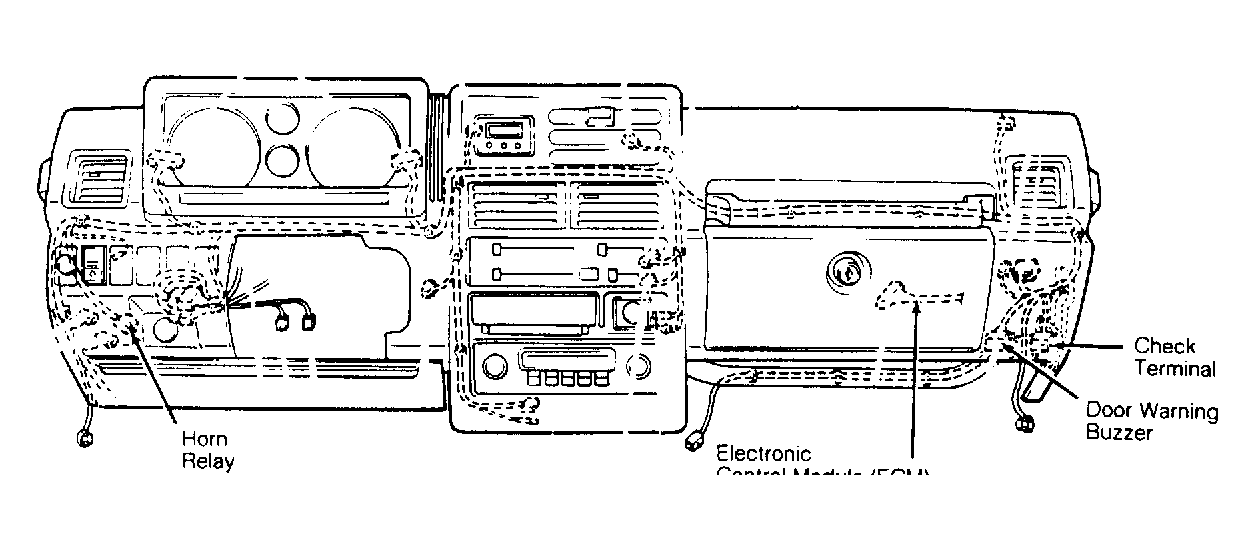

Fig 1: Component Locations (1 Of 5)
G119111
Fig 2: Component Locations (2 Of 5)
G47506
Fig 3: Component Locations (3 Of 5)
G47507

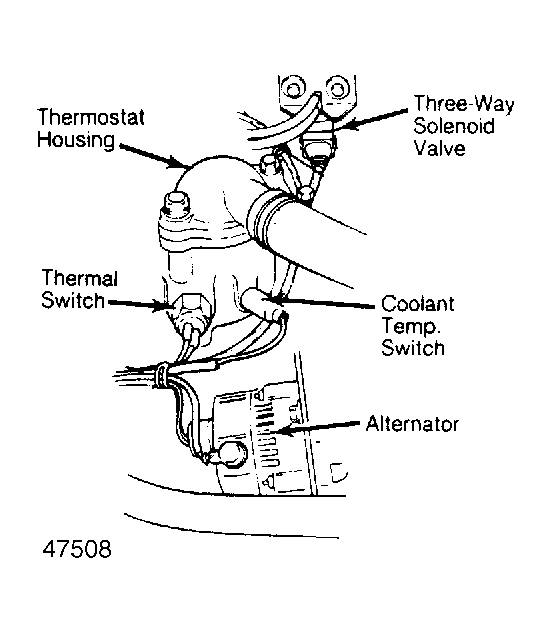

Fig 4: Component Locations (4 Of 5)
G47508

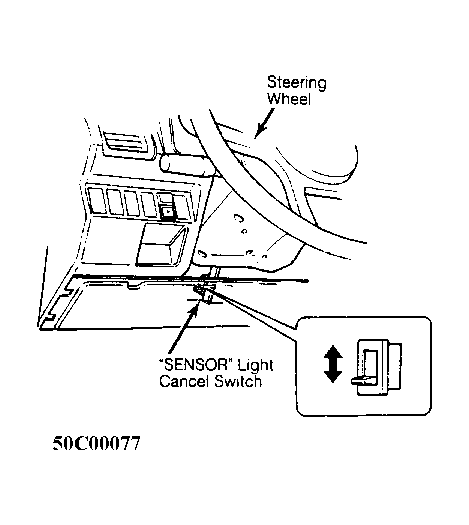

Fig 5: Component Locations (5 Of 5)
G50C00077
