Open Circuit Test

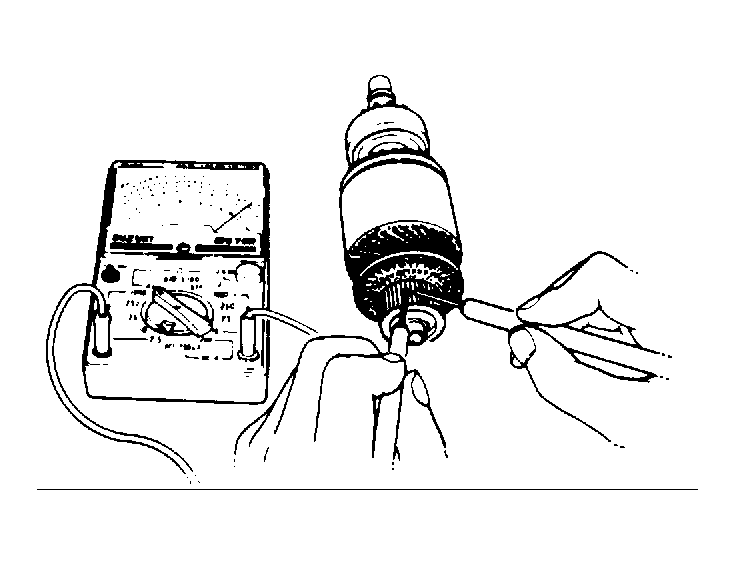

Check for continuity between individual segments of the brush end of the armature. See Figure. If there is continuity between all the segments, armature is good. If there is no continuity, there is an open circuit and armature must be replaced.
