Pull-In Test

Connect test leads to starter. See Fig 1. Connect battery negative leads to starter housing and "M" terminal. Connect battery positive lead to "S" terminal. If starter pinion gear does not move out, replace solenoid.

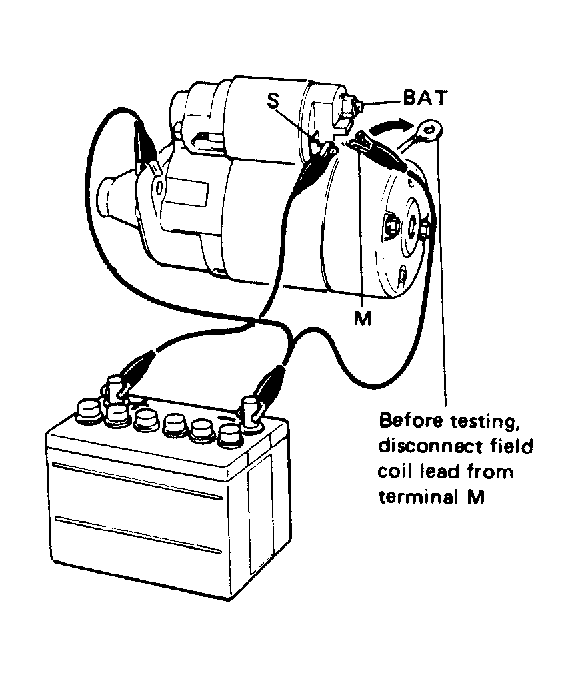

Fig 1: Testing Solenoid Pull-In & Hold-In Coil Windings

Courtesy of SUZUKI OF AMERICA CORP.
