NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.

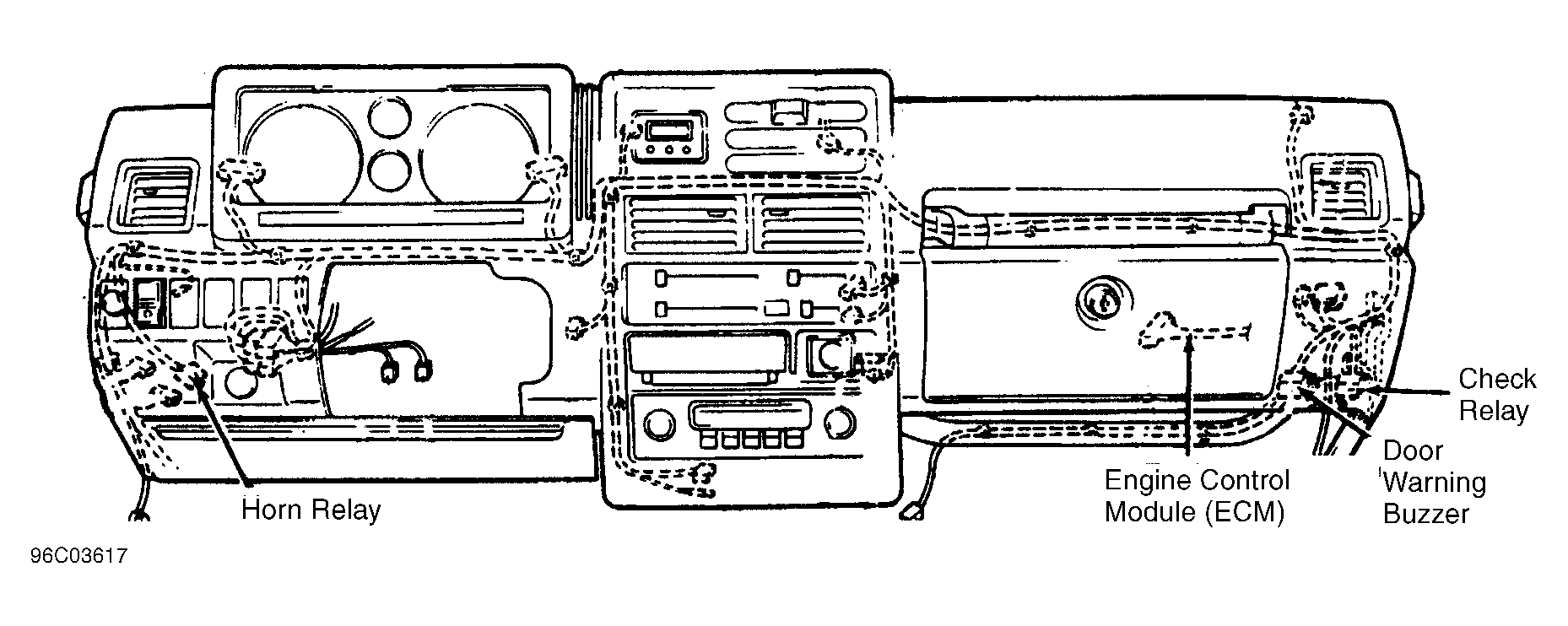

Fig 1: Component Locations (1 Of 2)

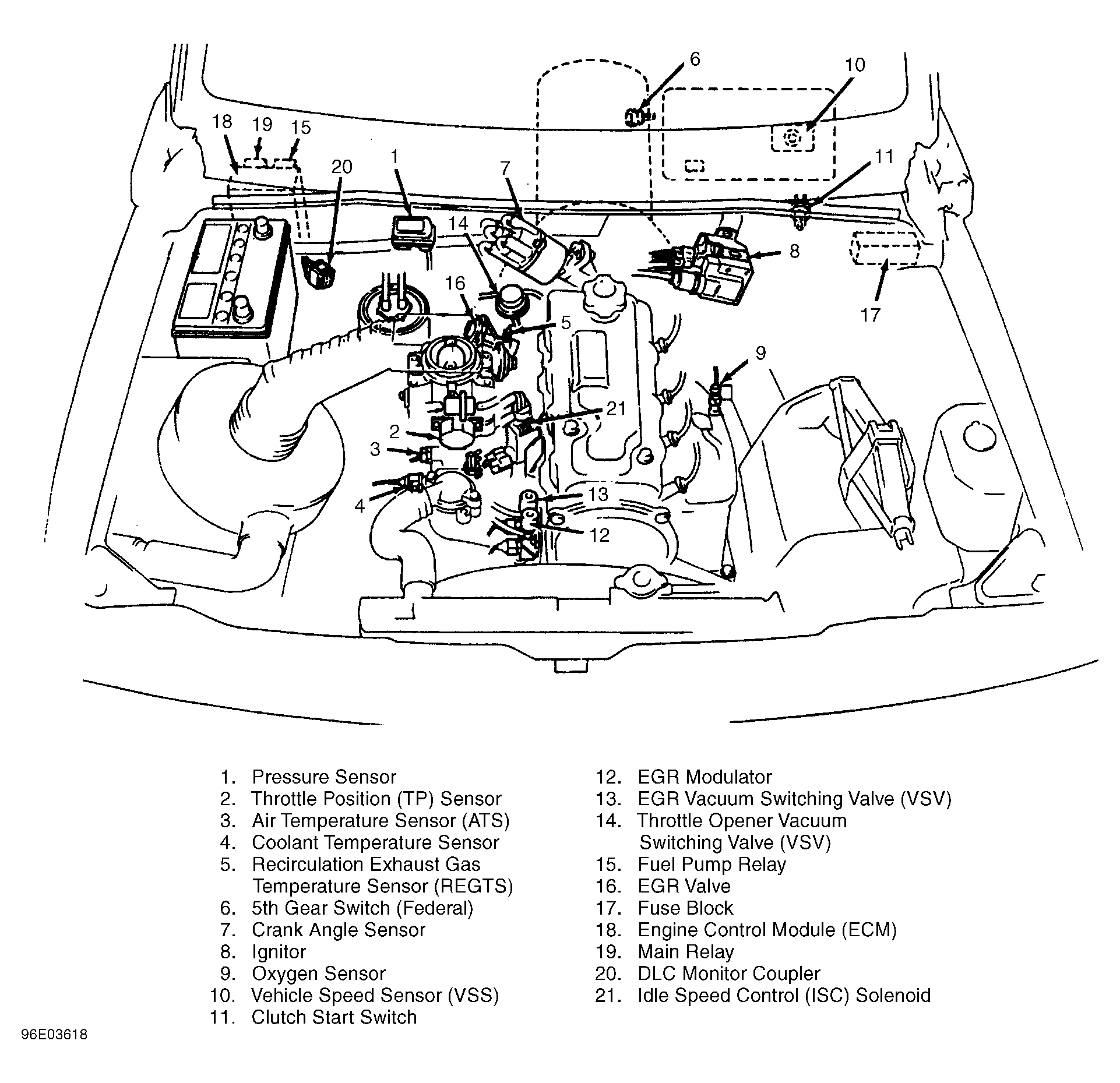

Fig 2: Component Locations (2 Of 2)
