Throttle Position (TP) Sensor

THROTTLE POSITION (TP) SENSOR VOLTAGE ⁽¹⁾

Application

⁽²⁾ Volts

With .140" (3.5 mm) Clearance At Stop Screw

0.98-1.02

⁽¹⁾	Ignition on and engine off.

⁽²⁾	Using a voltmeter, backprobe between PCM connector "B", terminals No. 6 (Light Green/White wire) and No. 9 (Light Green/Black wire). See Fig 1 .

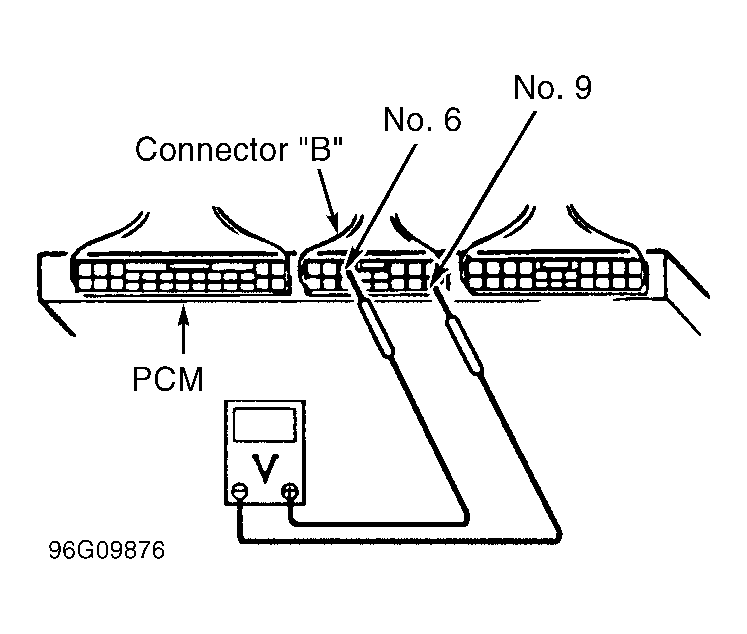

Fig 1: Testing TP Sensor Voltage At PCM

Courtesy of SUZUKI OF AMERICA CORP.
