Generator Components
Download the full database via torrent (~1.1 TB)

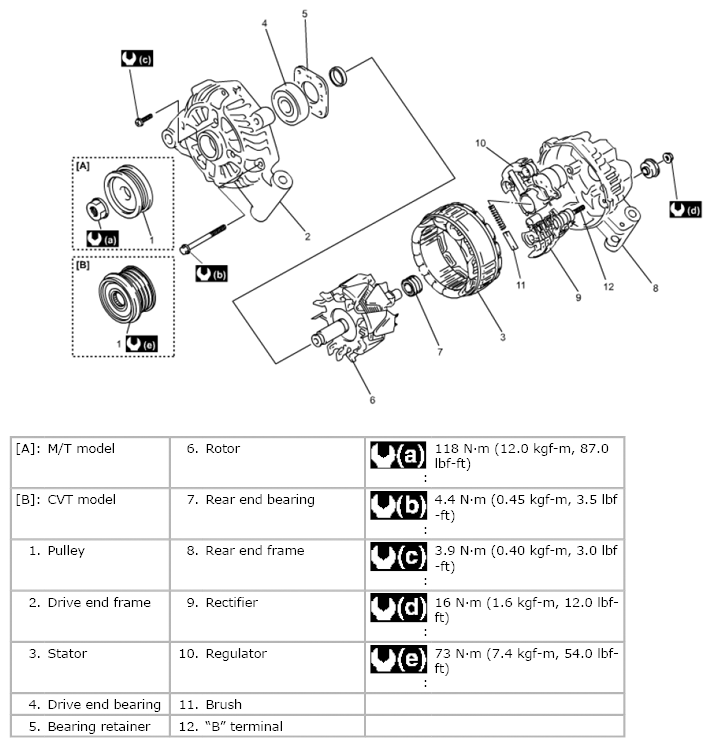

Fig 1: Identifying Generator Components
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
