Transfer Assembly Components
Transfer Assembly Components
Download the full database via torrent (~1.1 TB)

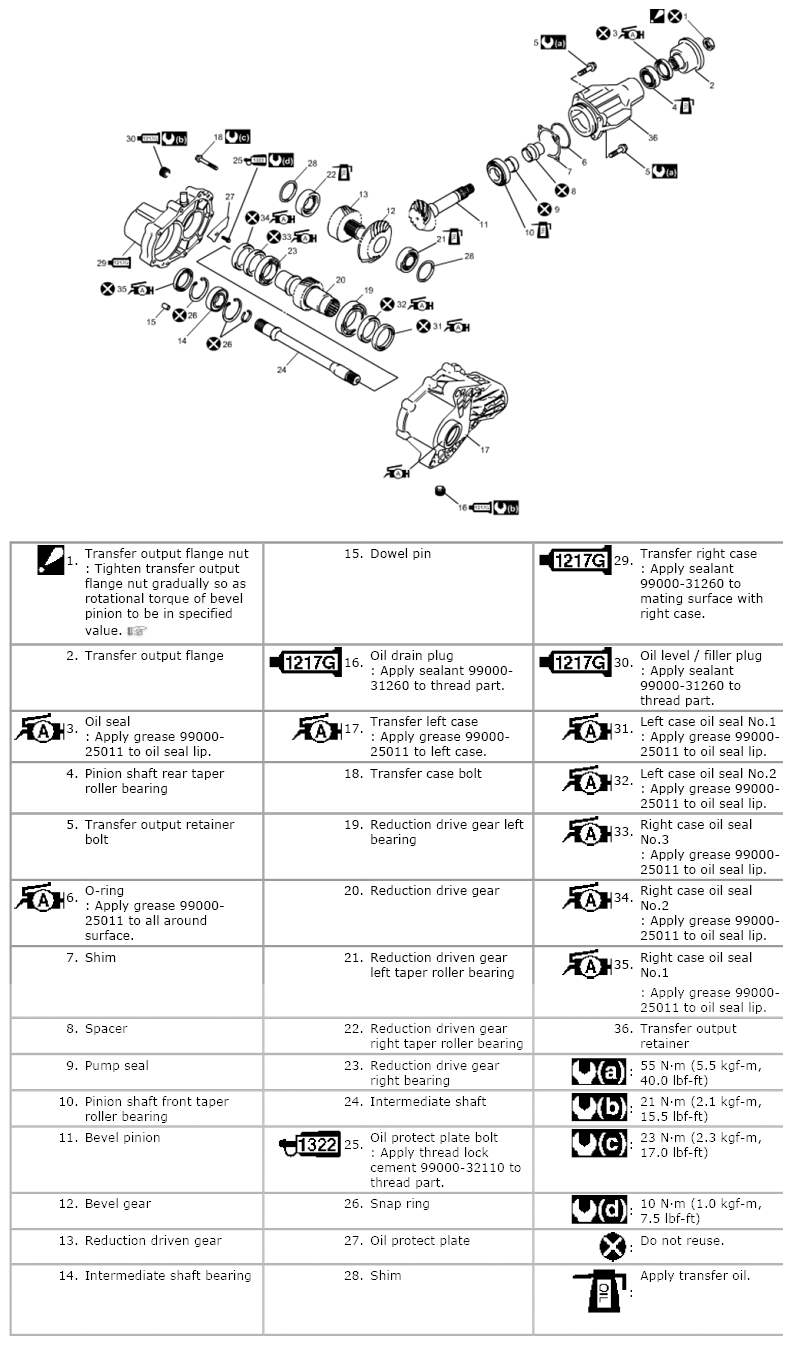

Fig 1: Identifying Transfer Assembly Components
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
