"Check Engine" Light Off
"Check Engine" Light Off
Download the full database via torrent (~1.1 TB)

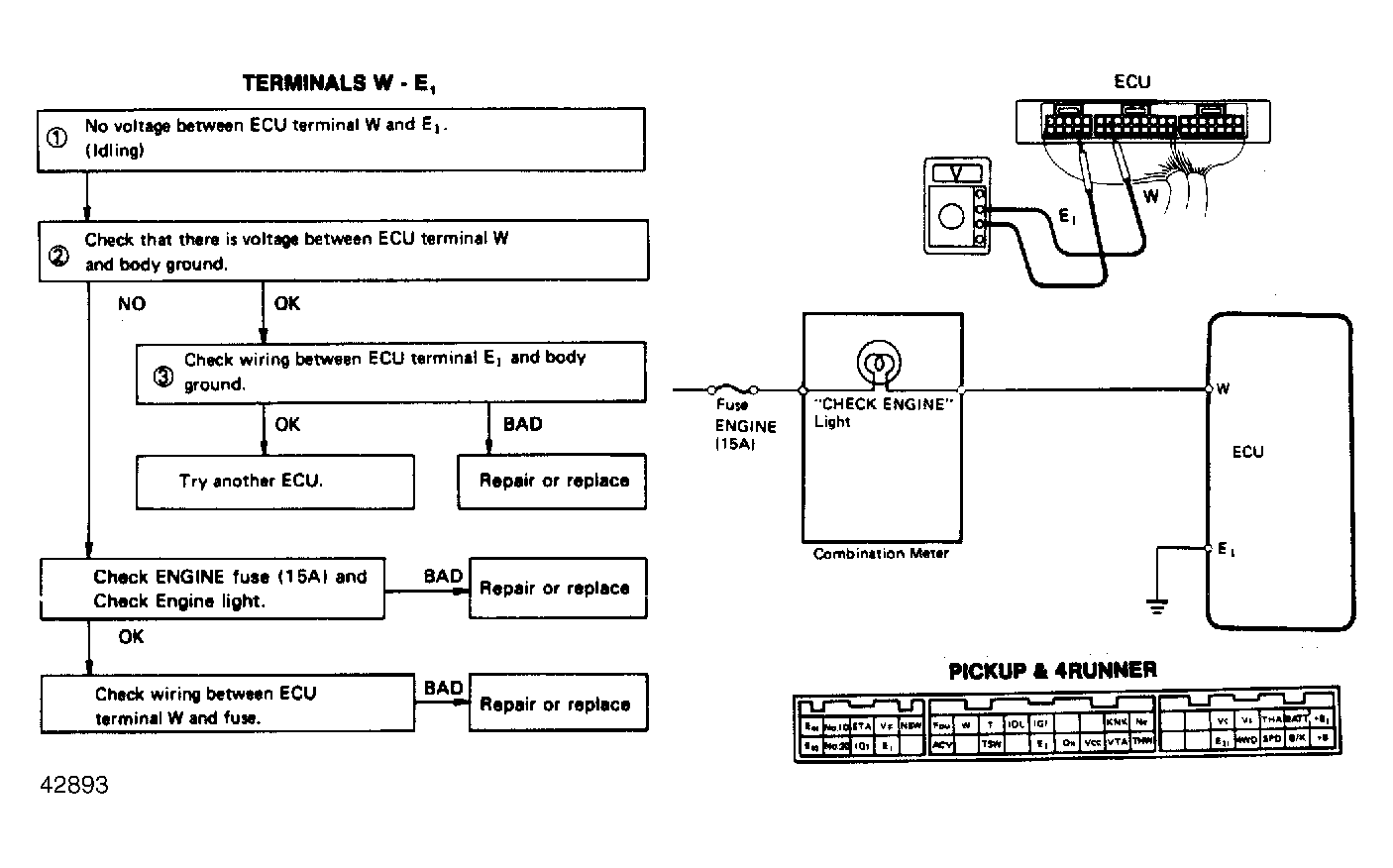

Fig 1: Terminals W - E1
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
