A/C Compressor
A/C Compressor
Download the full database via torrent (~1.1 TB)

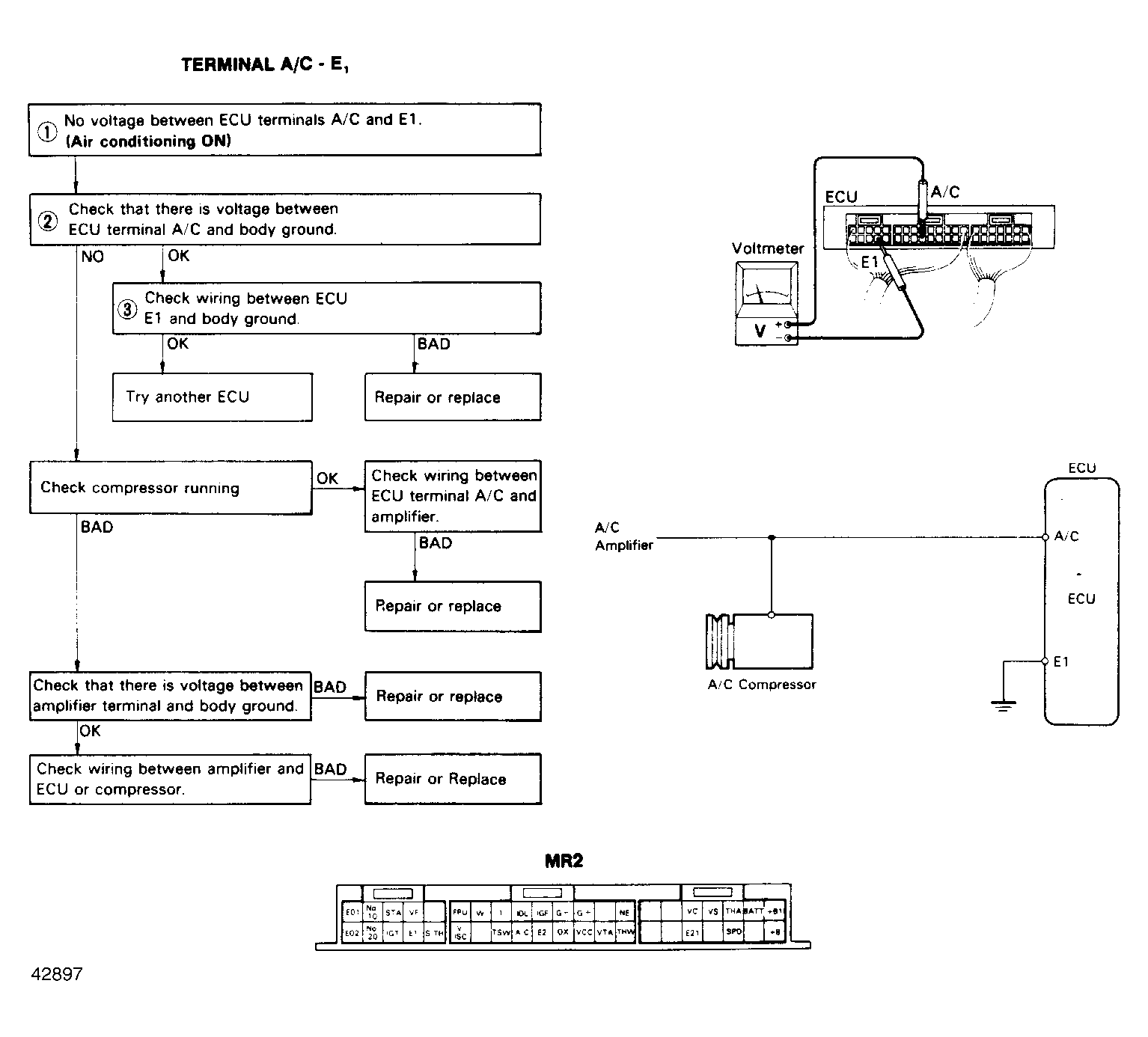

Fig 1: Terminal A/C - E1
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
