Repair and Diagnosis
>>
Engine Performance
>>
System
>>
TCCS System
>>
Testing
>>
Injector Circuits Check
Injector Circuits Check
Download the full database via torrent (~1.1 TB)

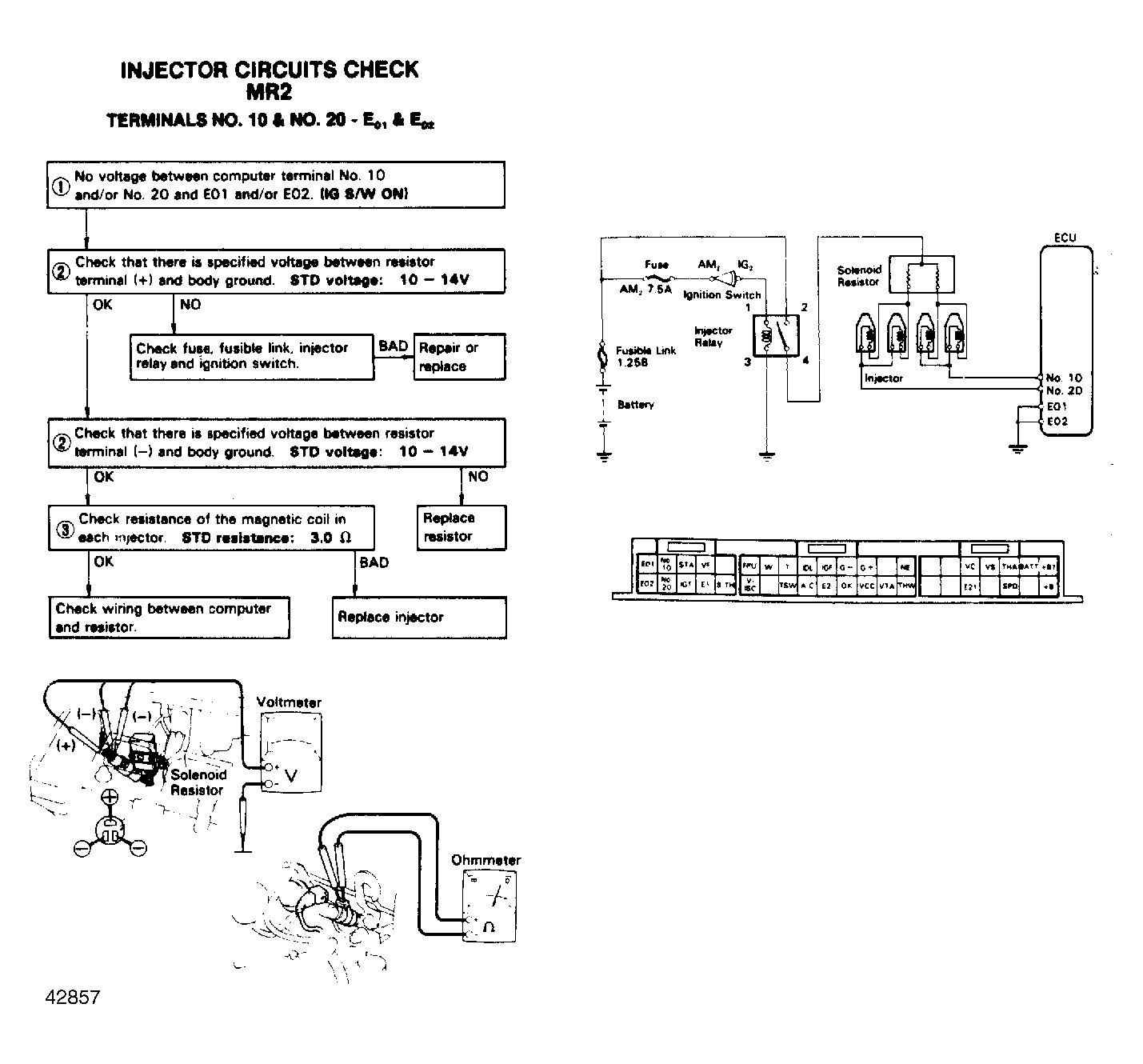

Fig 1: Terminals No. 10 & No. 20 - E01 & E02
