Trouble Code 5 Blinks Oxygen Sensor
Trouble Code 5 Blinks Oxygen Sensor
Download the full database via torrent (~1.1 TB)

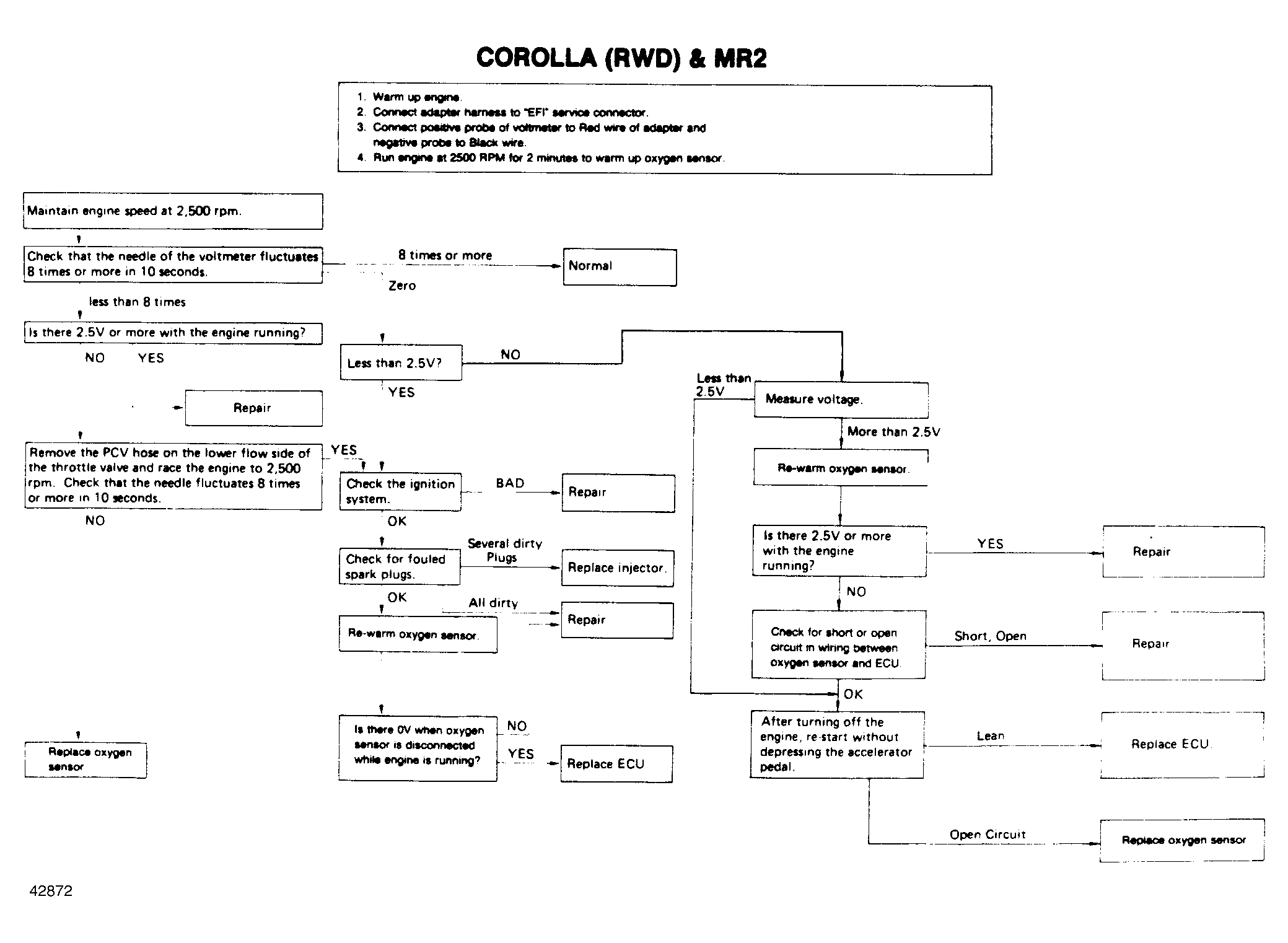

Fig 1: Trouble Code 5 Blinks Oxygen Sensor
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
