Trouble Code 6 Blinks Rpm Signal
Trouble Code 6 Blinks Rpm Signal
Download the full database via torrent (~1.1 TB)

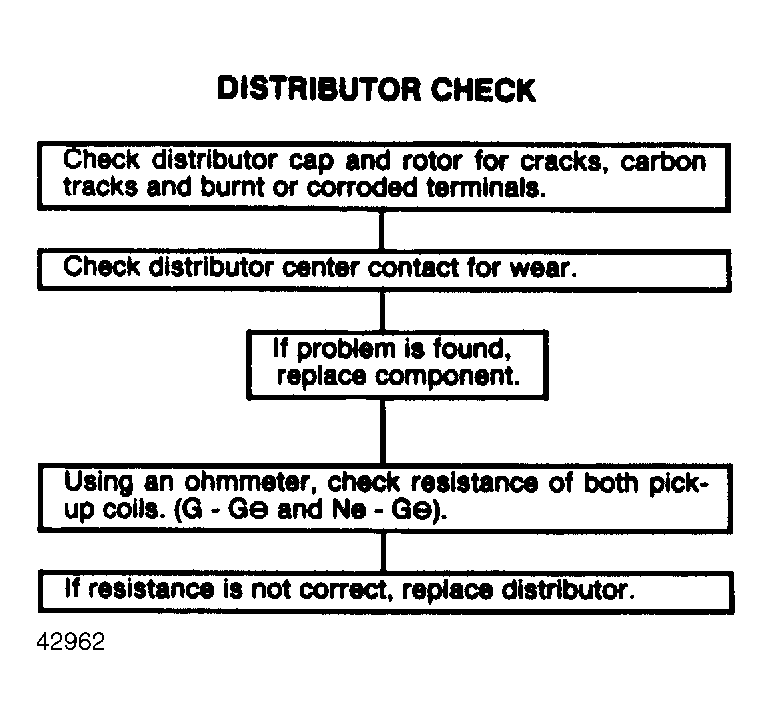

Fig 1: Distributor Check
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

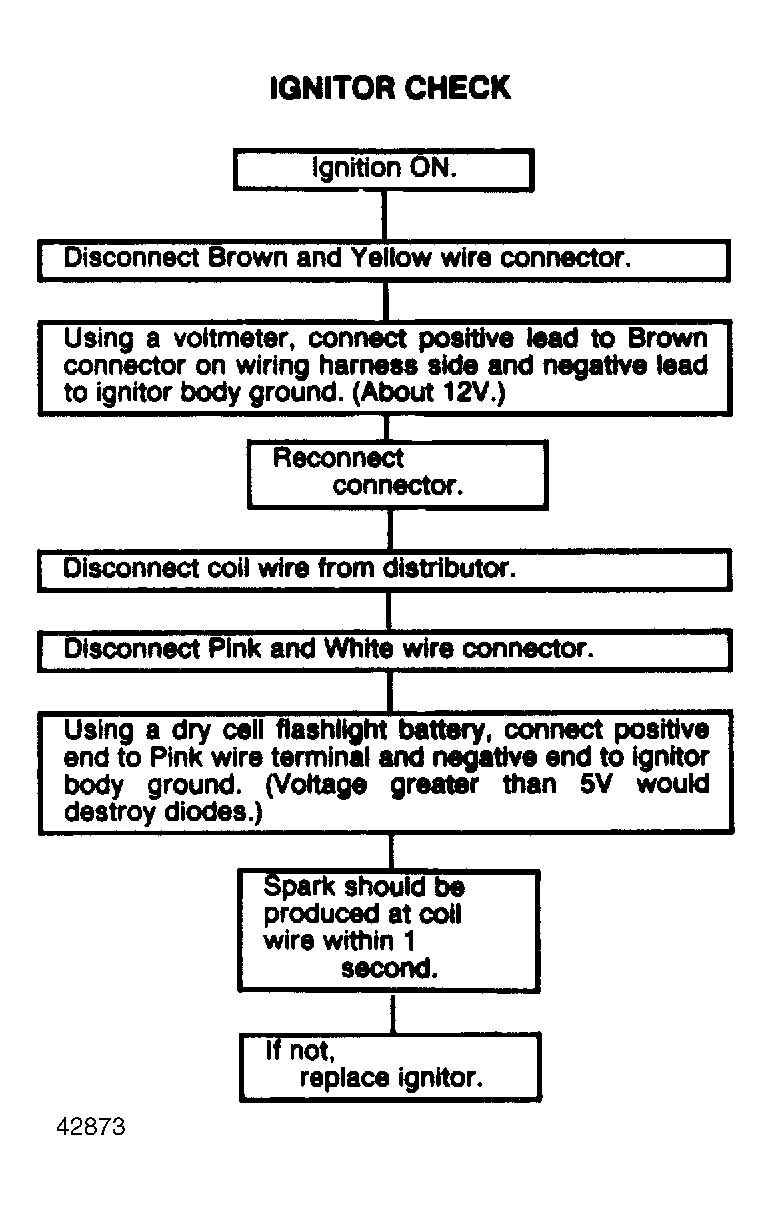

Fig 2: Ignitor Check
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
