Mixture Control System: Description

This system controls emissions of HC and CO during sudden deceleration. This is accomplished through a mixture control valve which allows additional fresh air to enter the intake manifold when sudden deceleration (closed throttle) occurs.

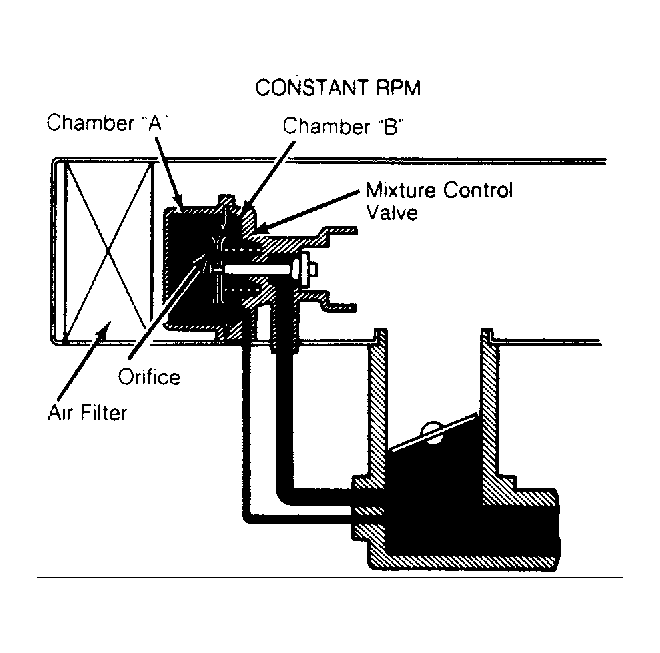

Fig 1: Typical Mixture Control System (Constant RPM)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

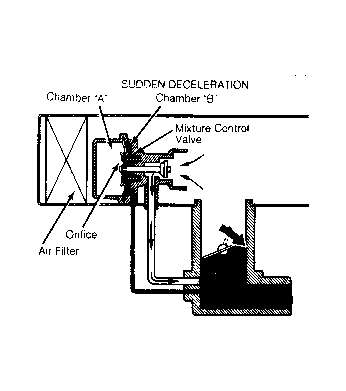

Fig 2: Typical Mixture Control System (Sudden Deceleration)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
