EFI Main Relay Test

To test EFI main relay, see Fig 1. The main EFI relay is located in the relay bank, on the left side of the fenderwell. Replace relay if defective.

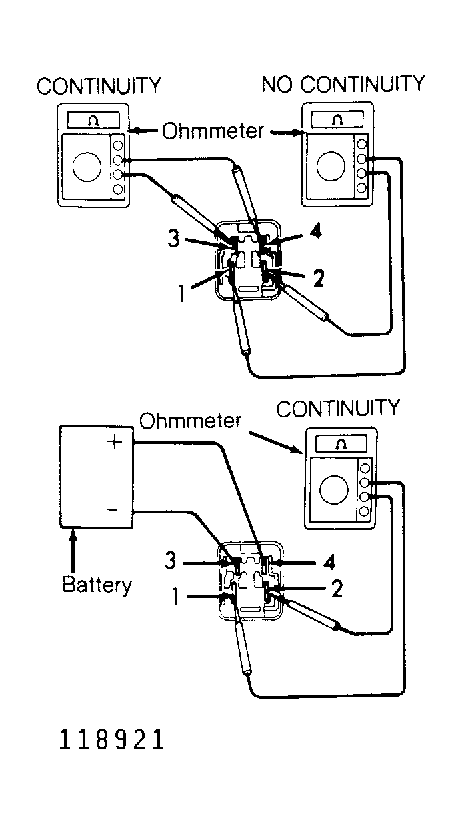

Fig 1: Testing EFI Main Relay

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
