Power Window Control System
>>
Location
Power Window Control System: Location
Download the full database via torrent (~1.1 TB)

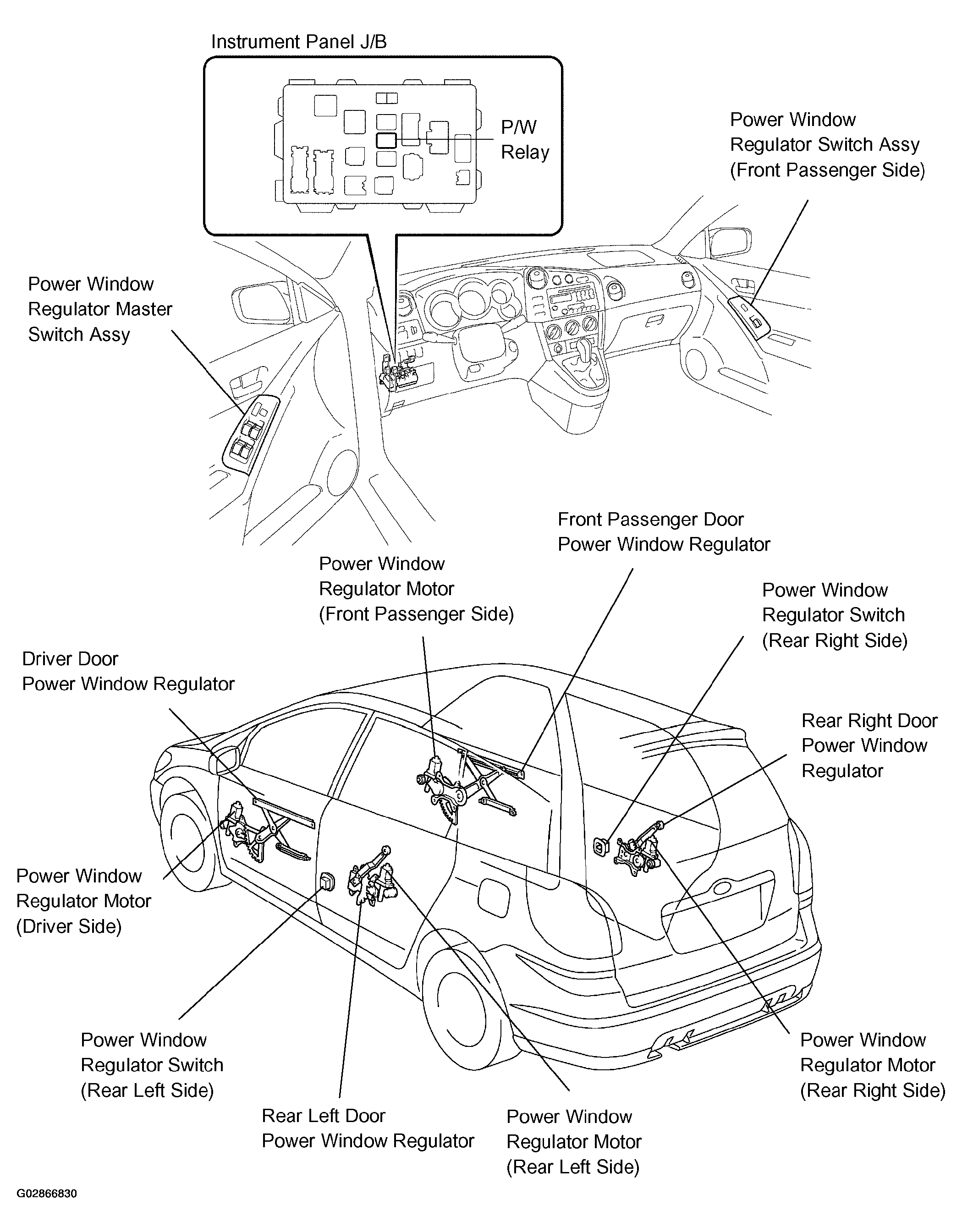

Fig 1: Identifying Power Window Control System Component Locations
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
