Engine Control System Self Diagnostics
>>
Self-Diagnostic System
>>
Engine Control Module Location
Engine Control Module Location
Download the full database via torrent (~1.1 TB)
For ECM location, see
Fig 1
.

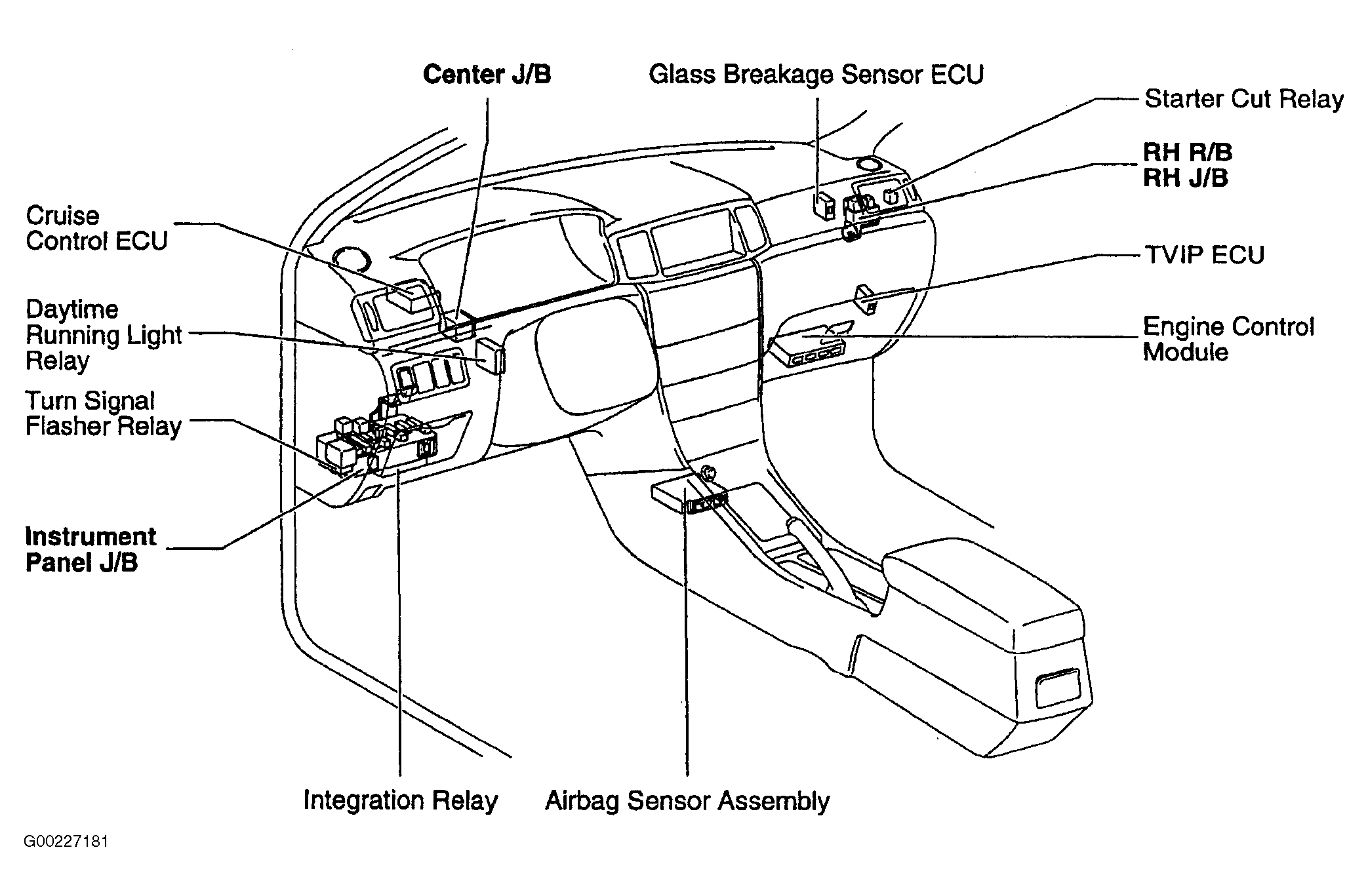

Fig 1: Locating Engine Control Module
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
