Home >> Toyota >> 2003 >> Prius >> Repair and Diagnosis >> Steering >> Steering Column >> Tilt Steering Column >> Components

Tilt Steering Column: Components

Download the full database via torrent (~1.1 TB)
Fig 1: Identifying Tilt Steering Column Components (1 Of 2)
G02844868Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

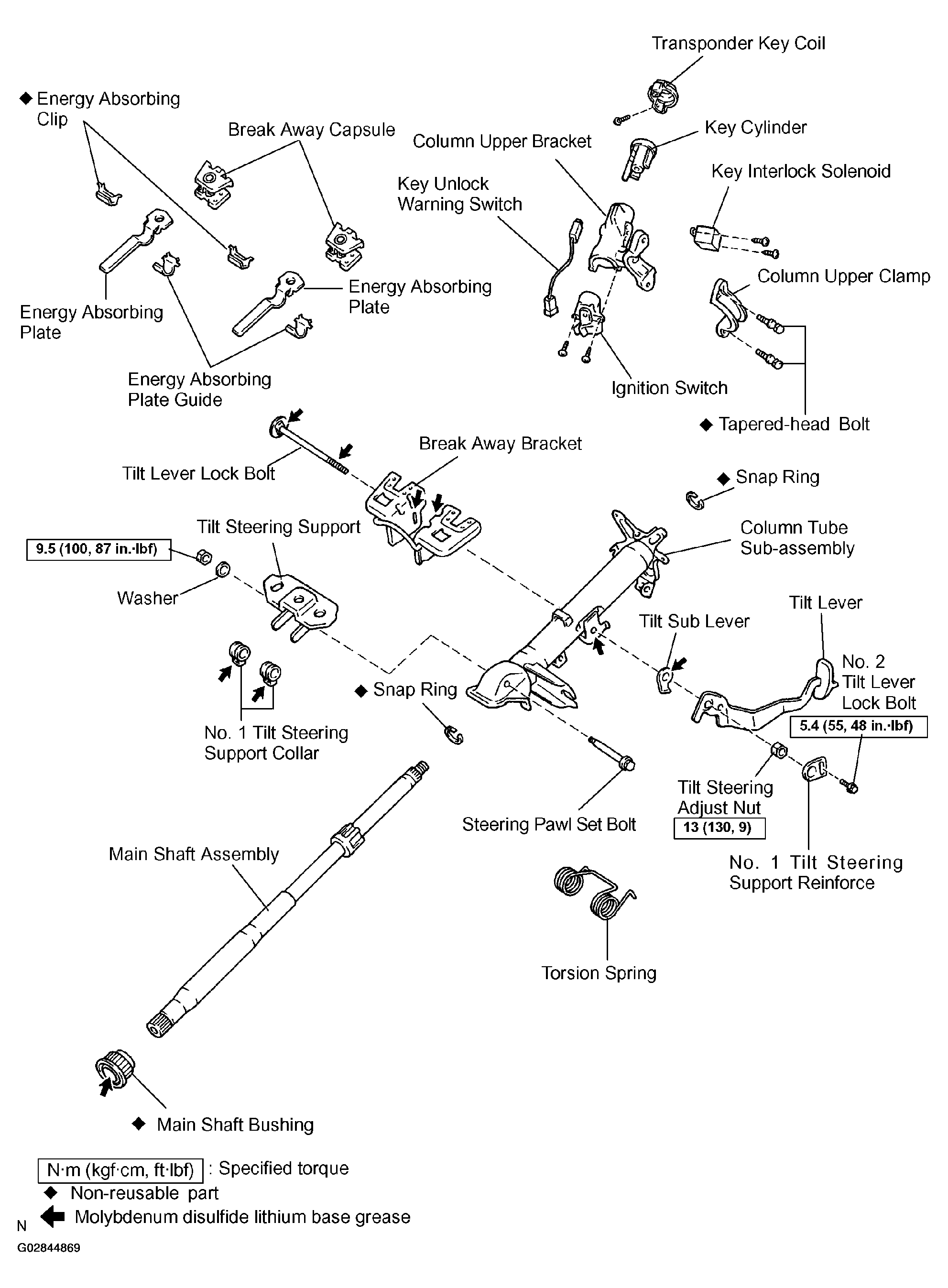

Fig 2: Identifying Tilt Steering Column Components (2 Of 2)
G02844869Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
